Cable-guide family with removable caps
Three marked guide sizes share a common two-piece arrangement.

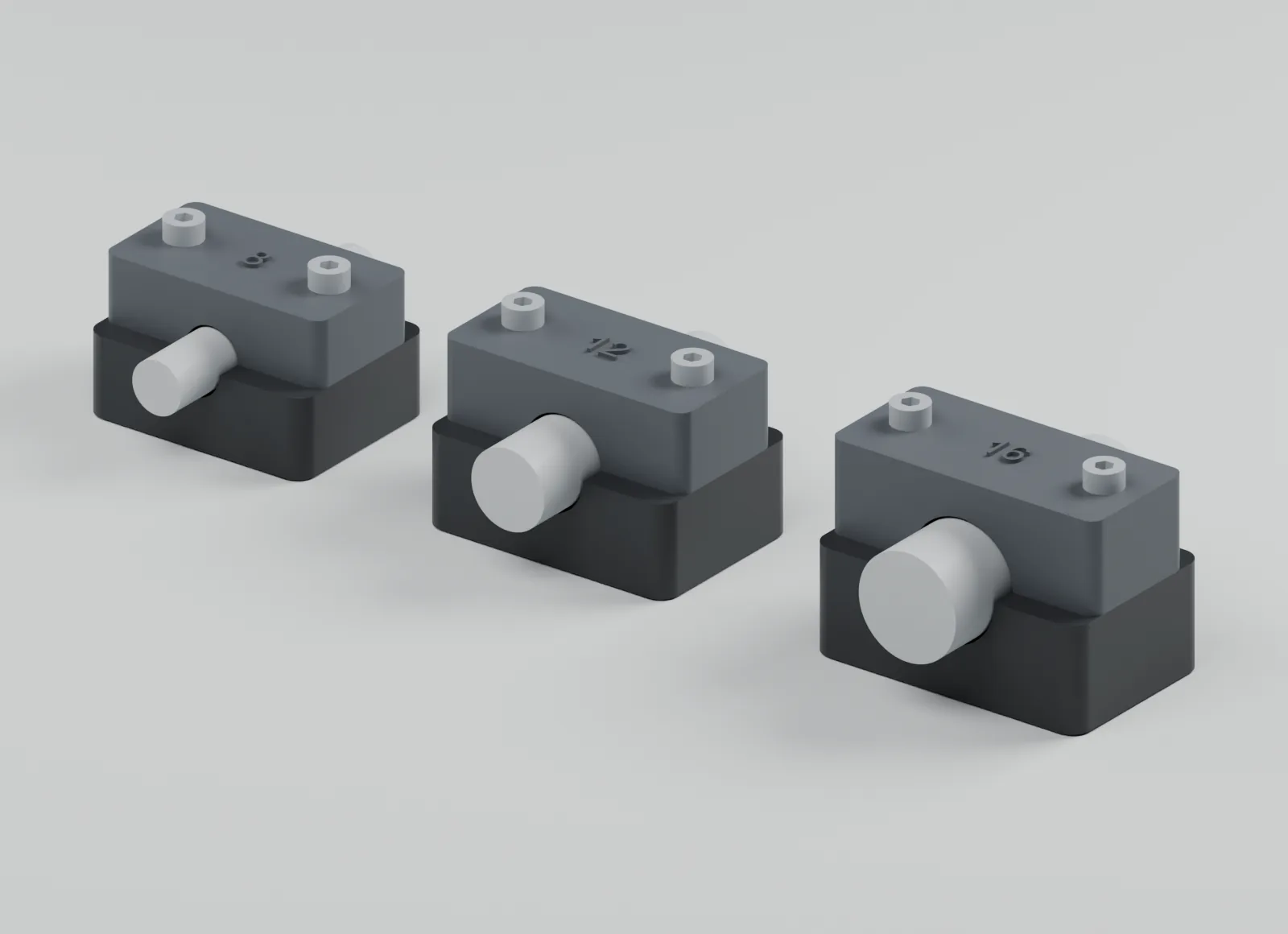

An original Vekform CAD design study, shown through CAD views and a rendered workshop scene.
Build a family around one interface

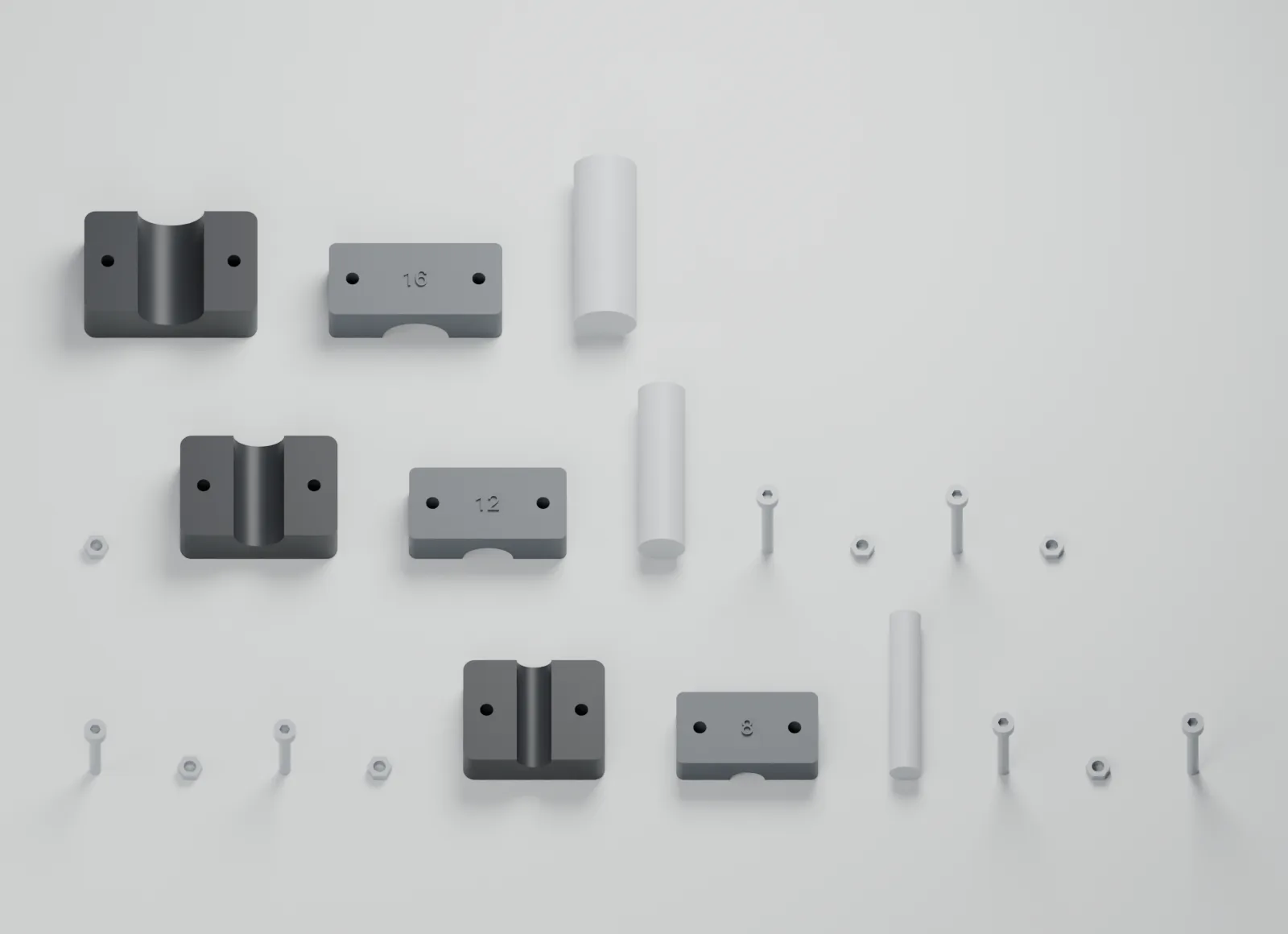

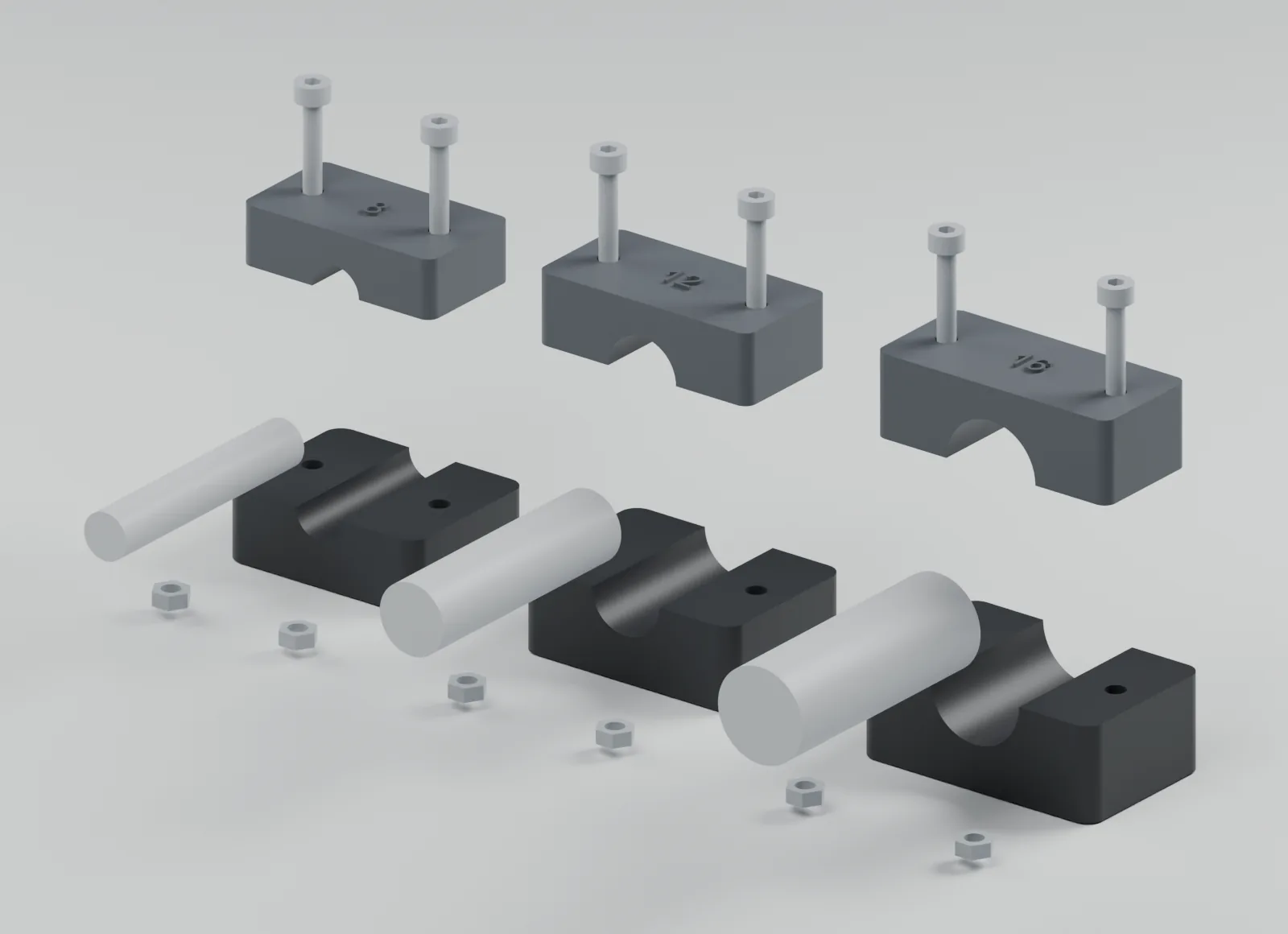

The 8, 12 and 16 size variants use the same lower carrier, removable cap and reference-cable arrangement. The channel dimensions change with the variant.
Put the size on the part

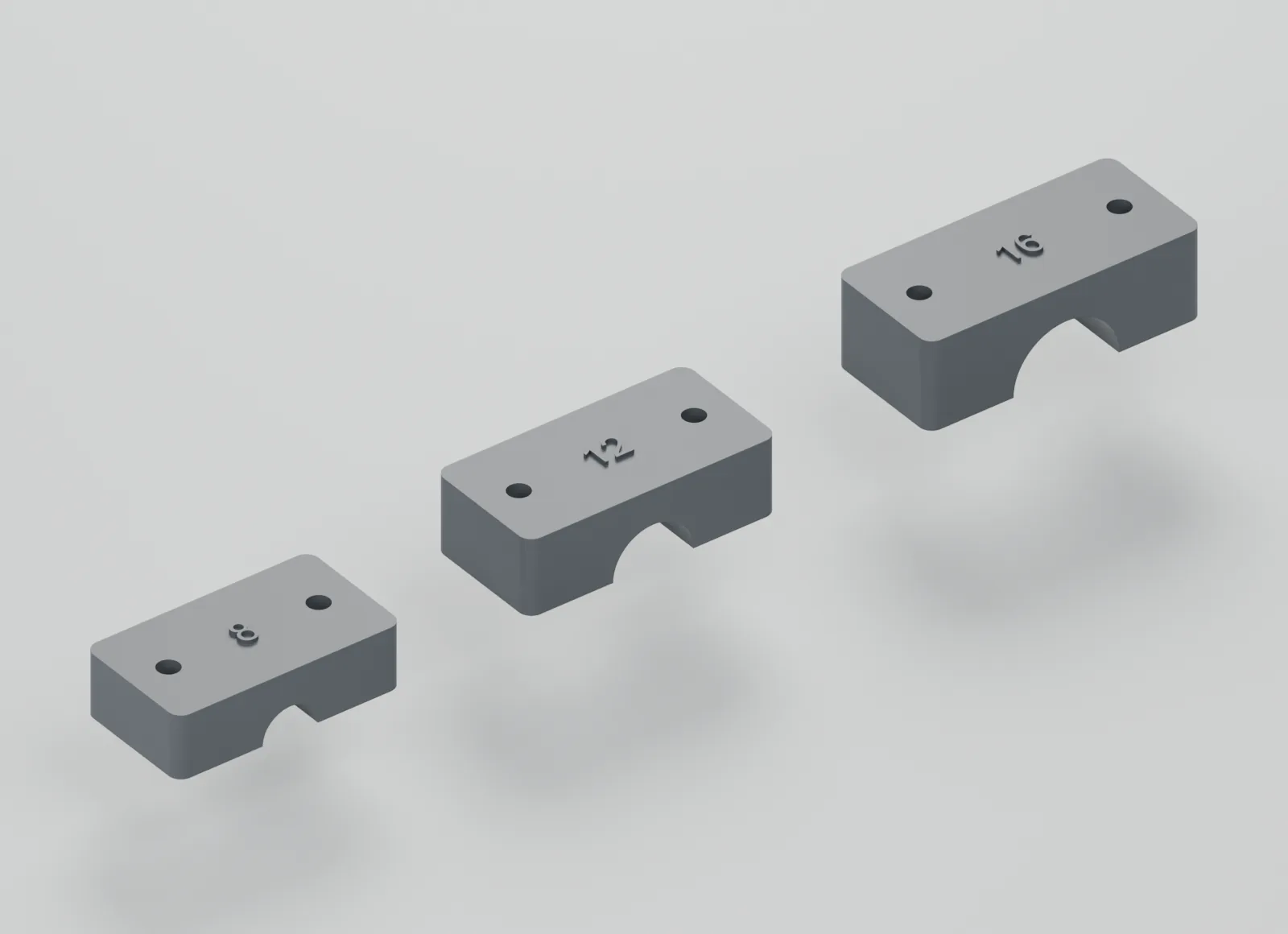

Each cap carries its size as modeled raised geometry. The marking travels with the component instead of relying on a separate label.
Carry the same arrangement across sizes
The three guides use the same carrier-and-cap arrangement, with different channel sizes and raised size markings.
Reuse the design structure
A common assembly pattern provides a clear starting point for future size variants and application-specific fit checks.
