Industrial tooling / DESIGN STUDY

Equipment display mount with removable cable cover

Home / Design studies / Equipment display mount with removable cable cover

An inclined display cradle pairs removable front retainers with a separate rear cable-access panel.

An original Vekform CAD design study, shown through CAD views and a rendered workshop scene.

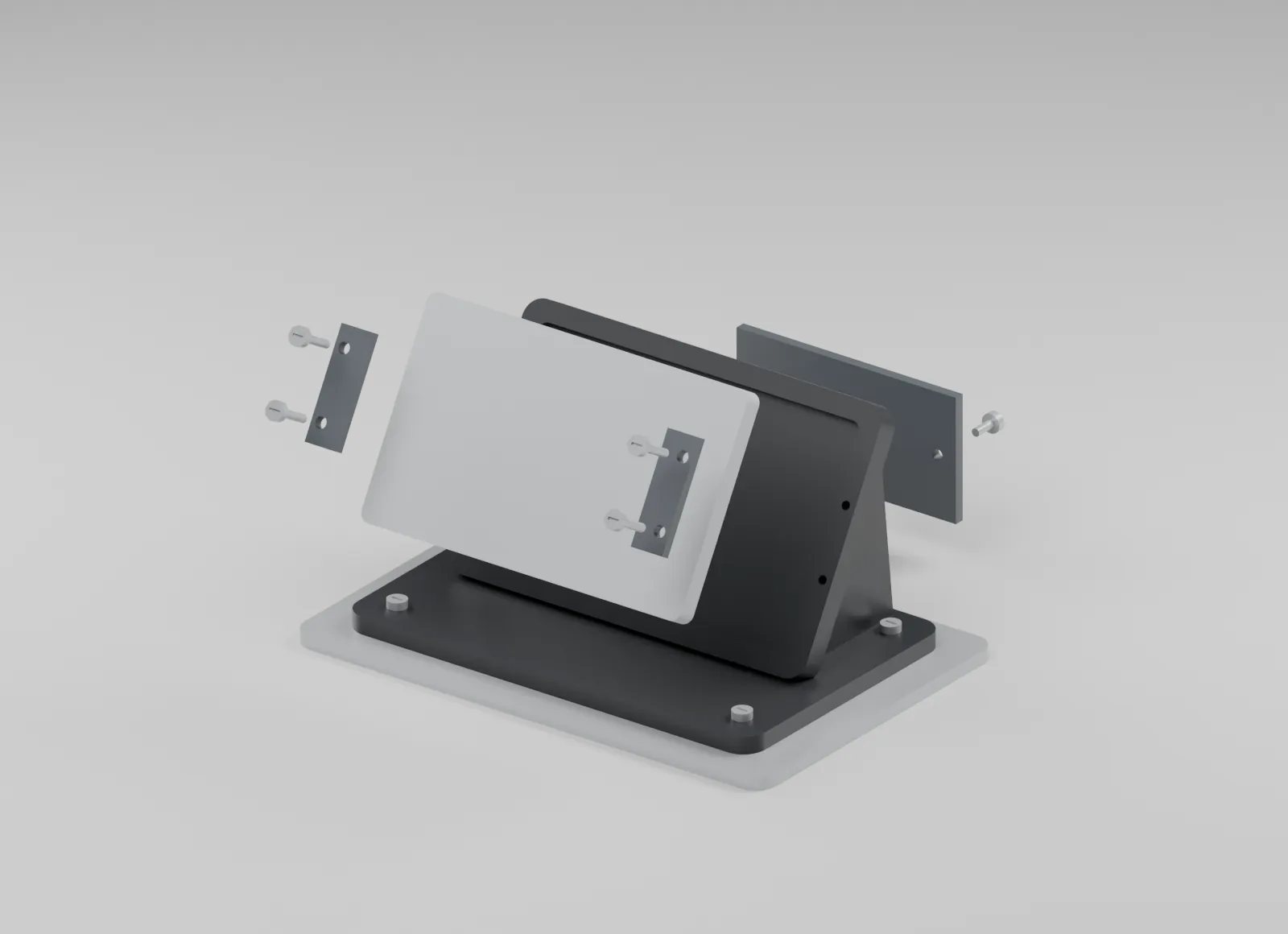

Exploded view of equipment display mount with removable cable cover
The inclined frame, retaining strips, cable cover and display reference.

Set the display angle

An inclined face seats the original blank display envelope. Two narrow retainers hold its outer edges against the mounting plate.

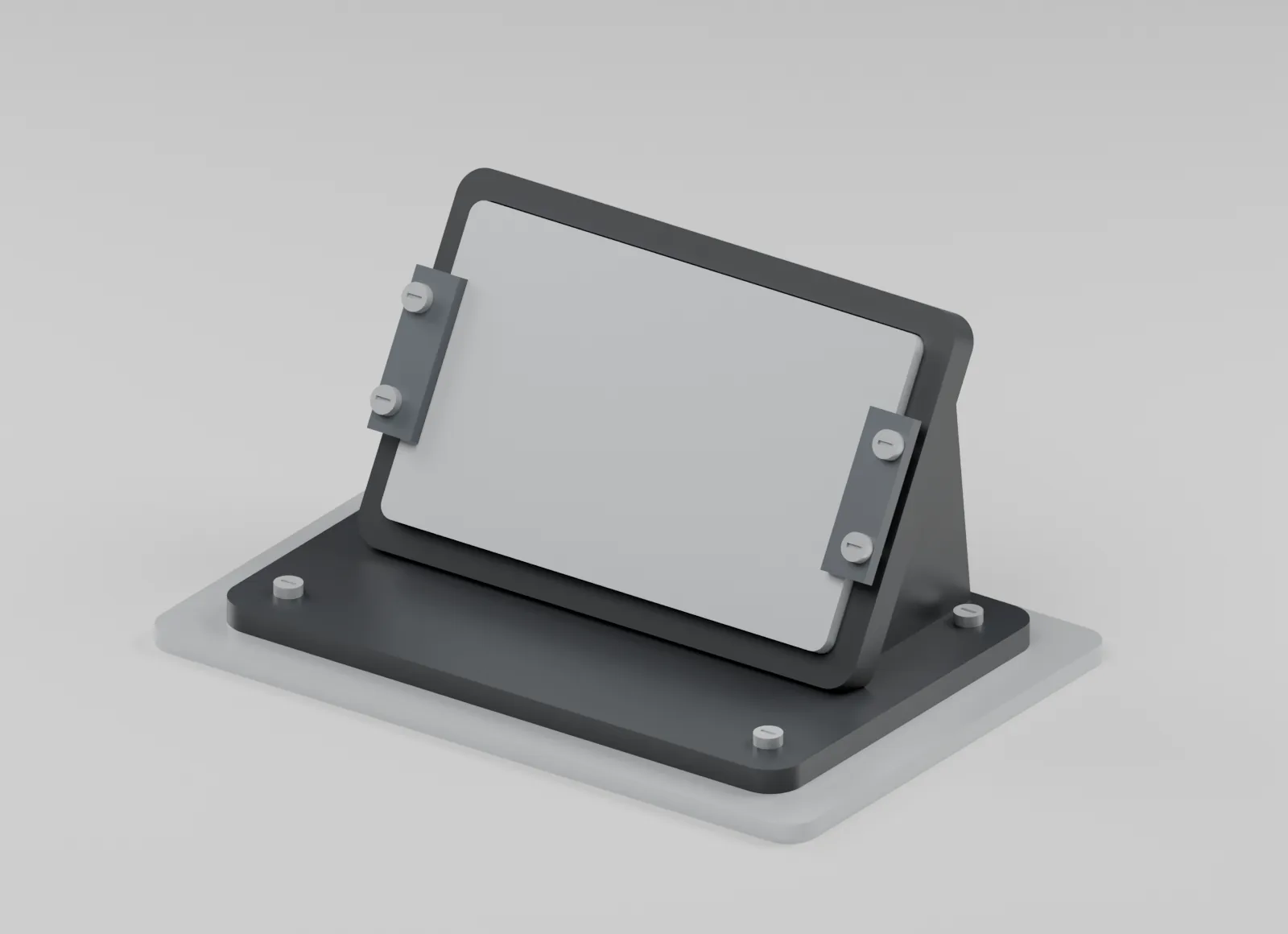

Inclined display mount on original reference mounting panel
The display cradle and edge retainers.

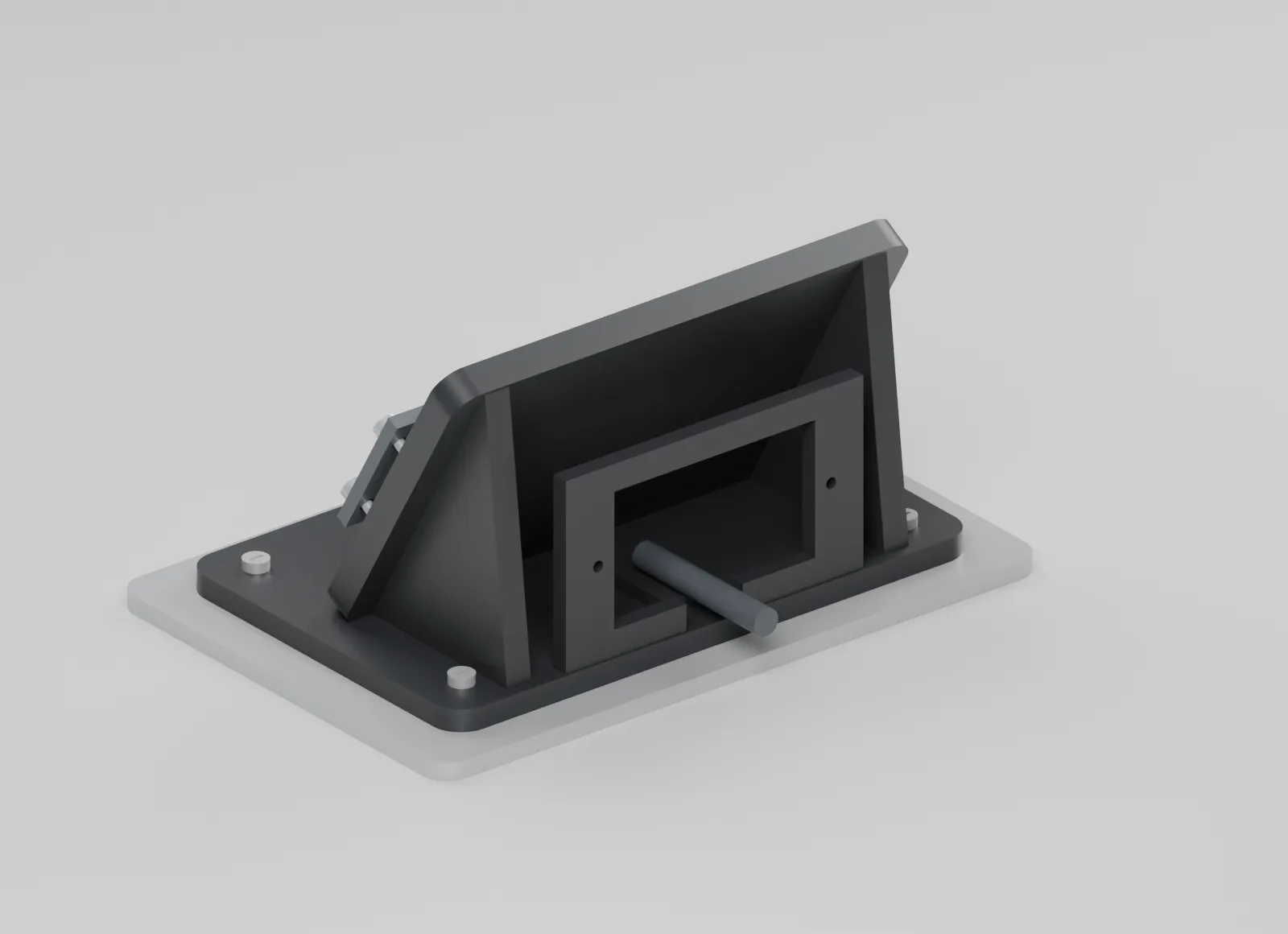

Rear service frame with cable cover removed
The rear cable-access opening.

Keep a route behind the display

A lower cable opening continues through the rear cover. The center section follows this route between the mounting base and inclined face.

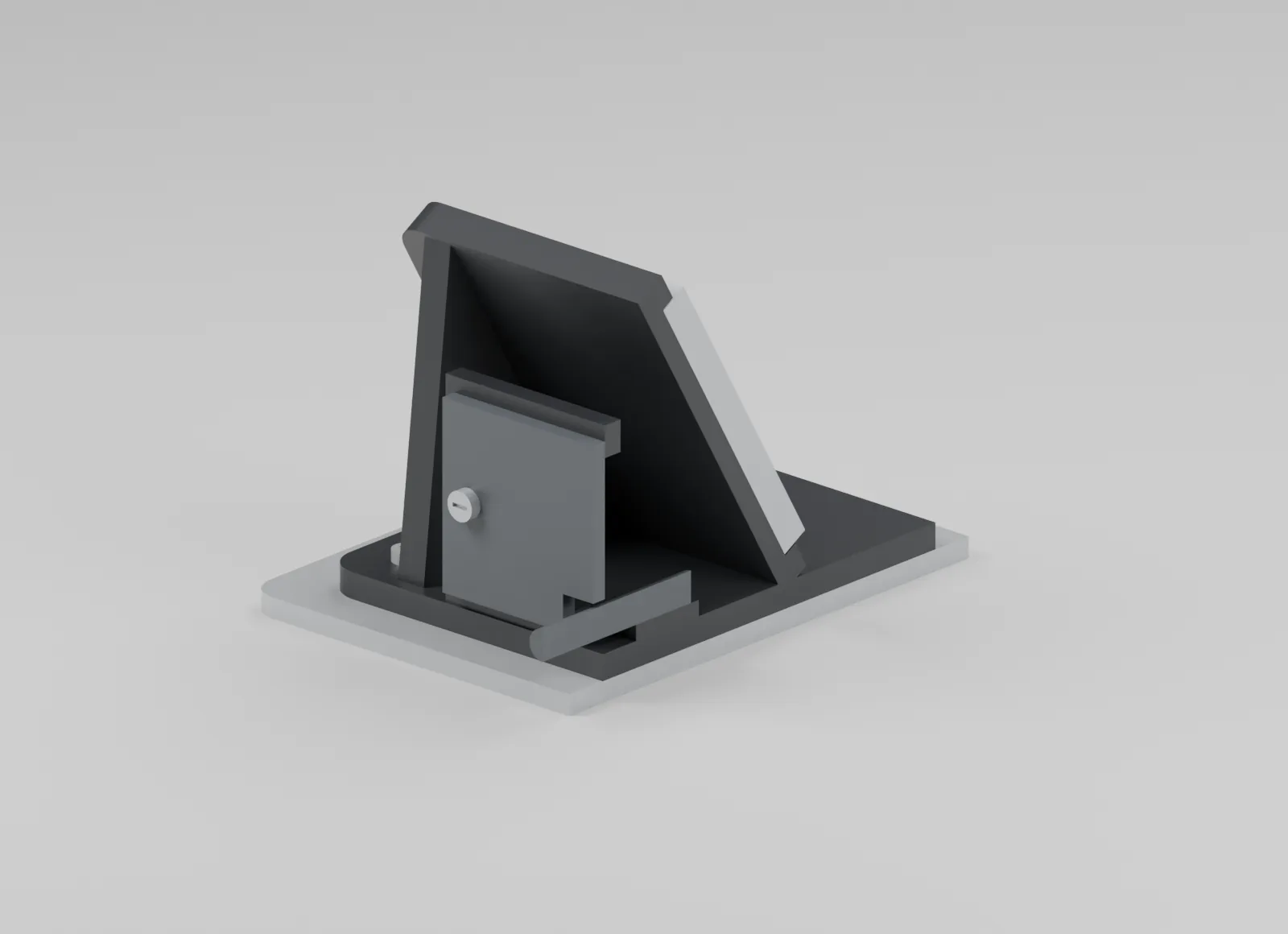

Center section of display stand and cable path
The rear cable route in section.

Separate the service pieces

Front retainers release the display envelope, while two rear screws release the cable cover. The base has its own mounting footprint.

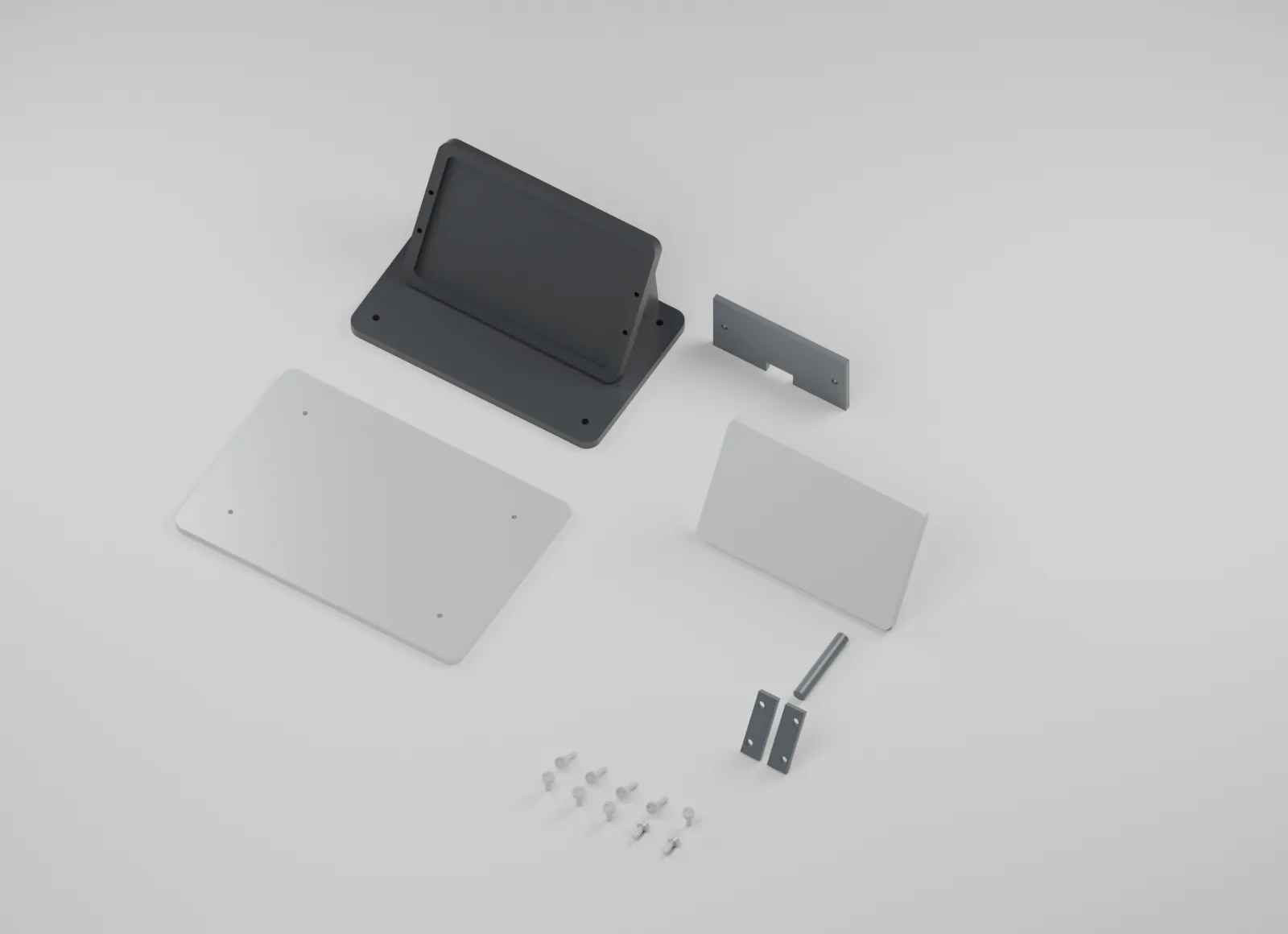

Display mount and reference components arranged separately
The display-mount components.

Bring viewing and access together

The complete study connects an angled viewing face with rear service space and a defined equipment reference mounting panel.

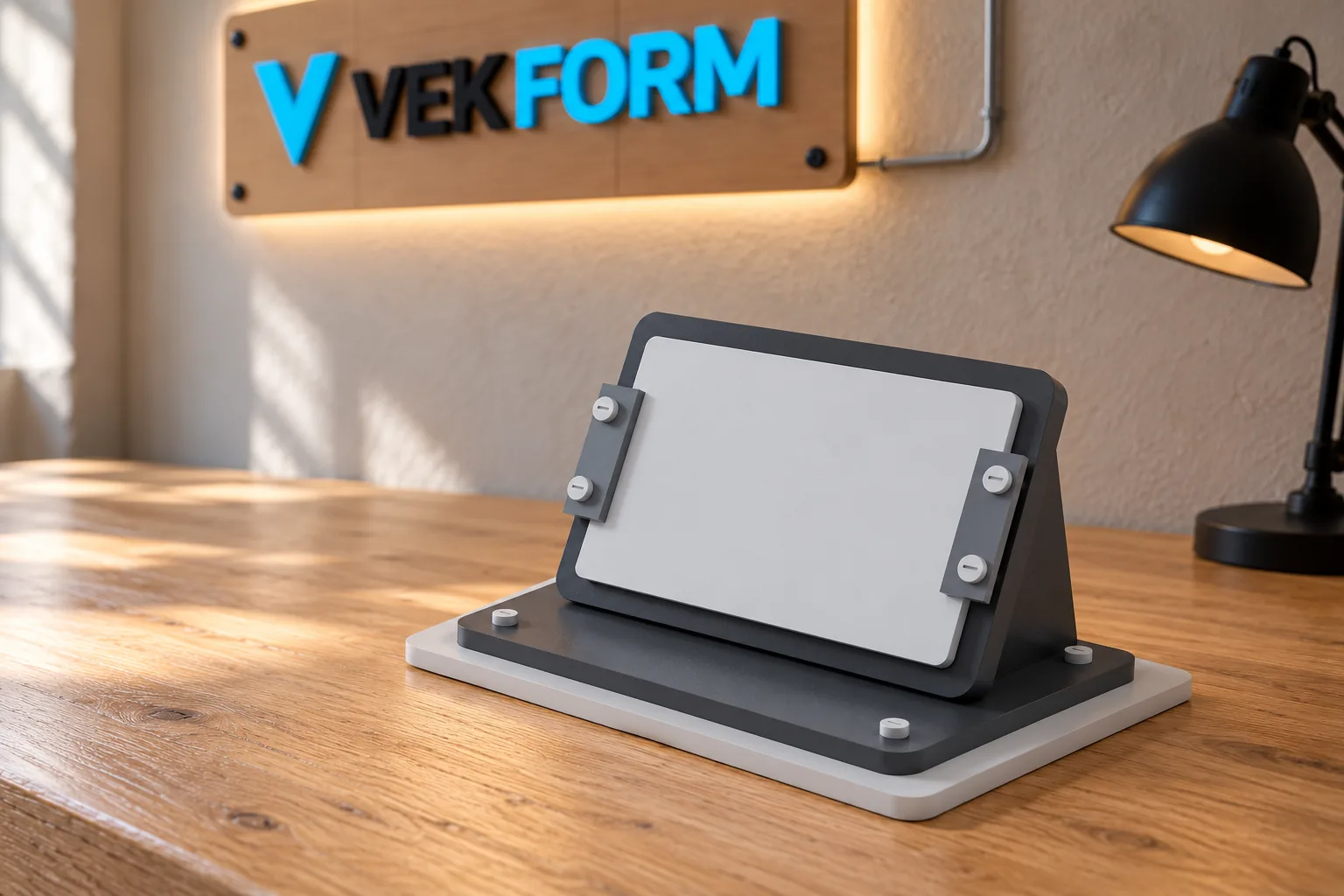

Rendered workshop scene of the original display mount
The assembled equipment display mount.
