A compartmented tray slides onto a separate channel mount and releases with a lift-out indexing pin.

An original Vekform CAD design study, shown through CAD views and a rendered workshop scene.

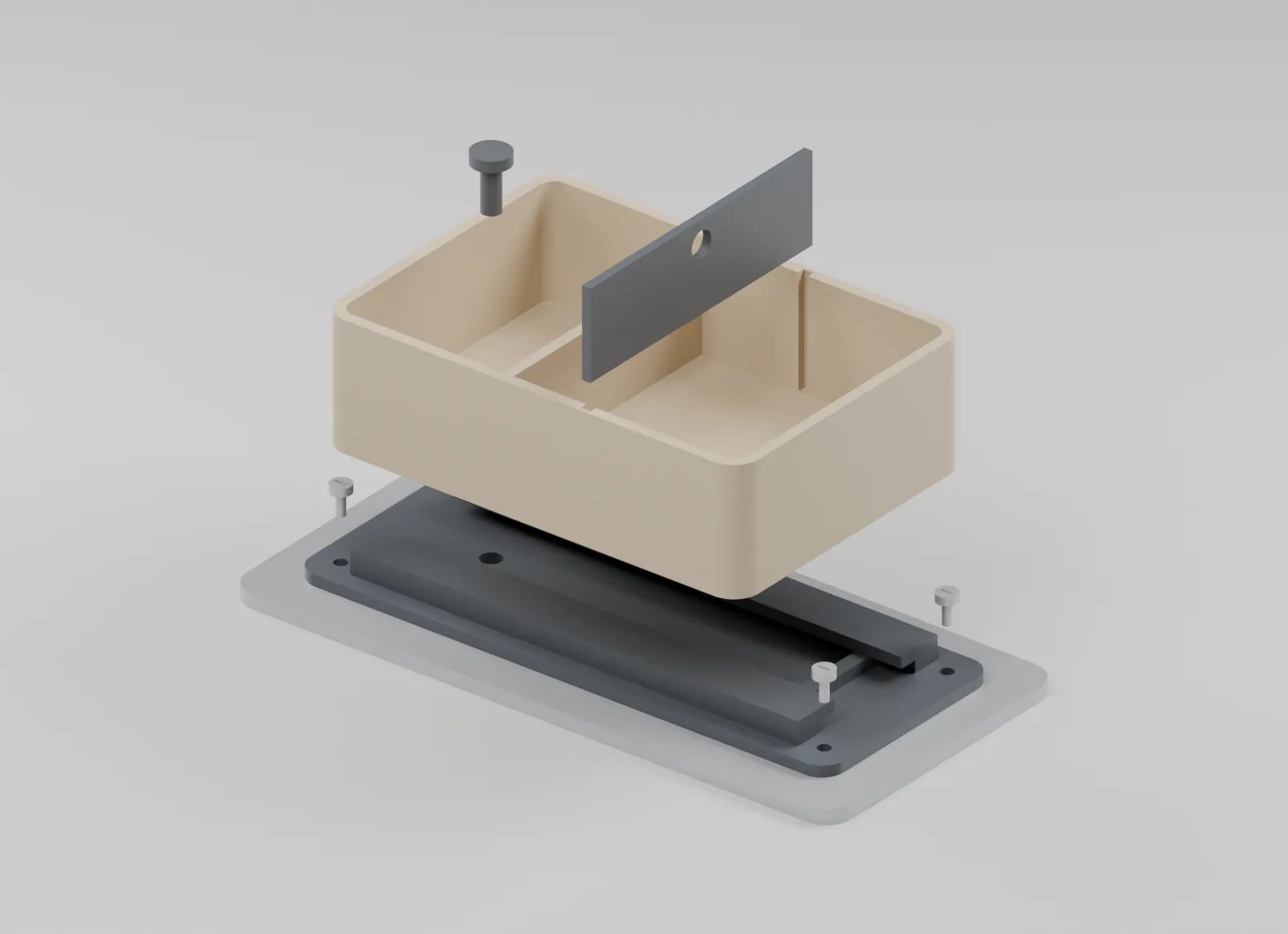

Exploded view of golf-cart modular organizer and removable mount — The organizer, removable divider and sliding mount shown separately.

Keep the tray removable

An underside T rail slides into an open mounting channel. A lift-out pin locates the tray at its seated position.

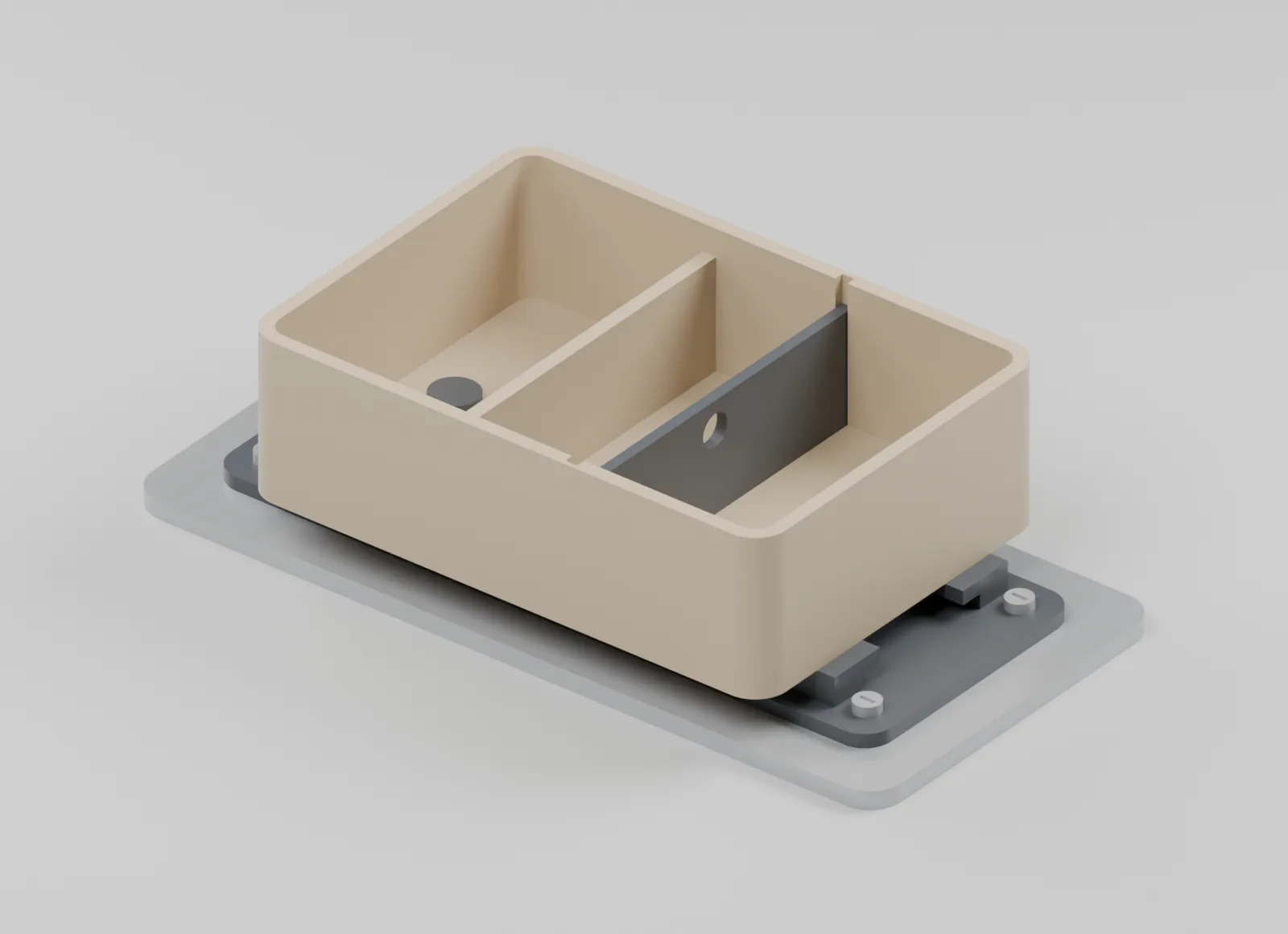

Assembled organizer and slide mount — The tray on its removable mount.

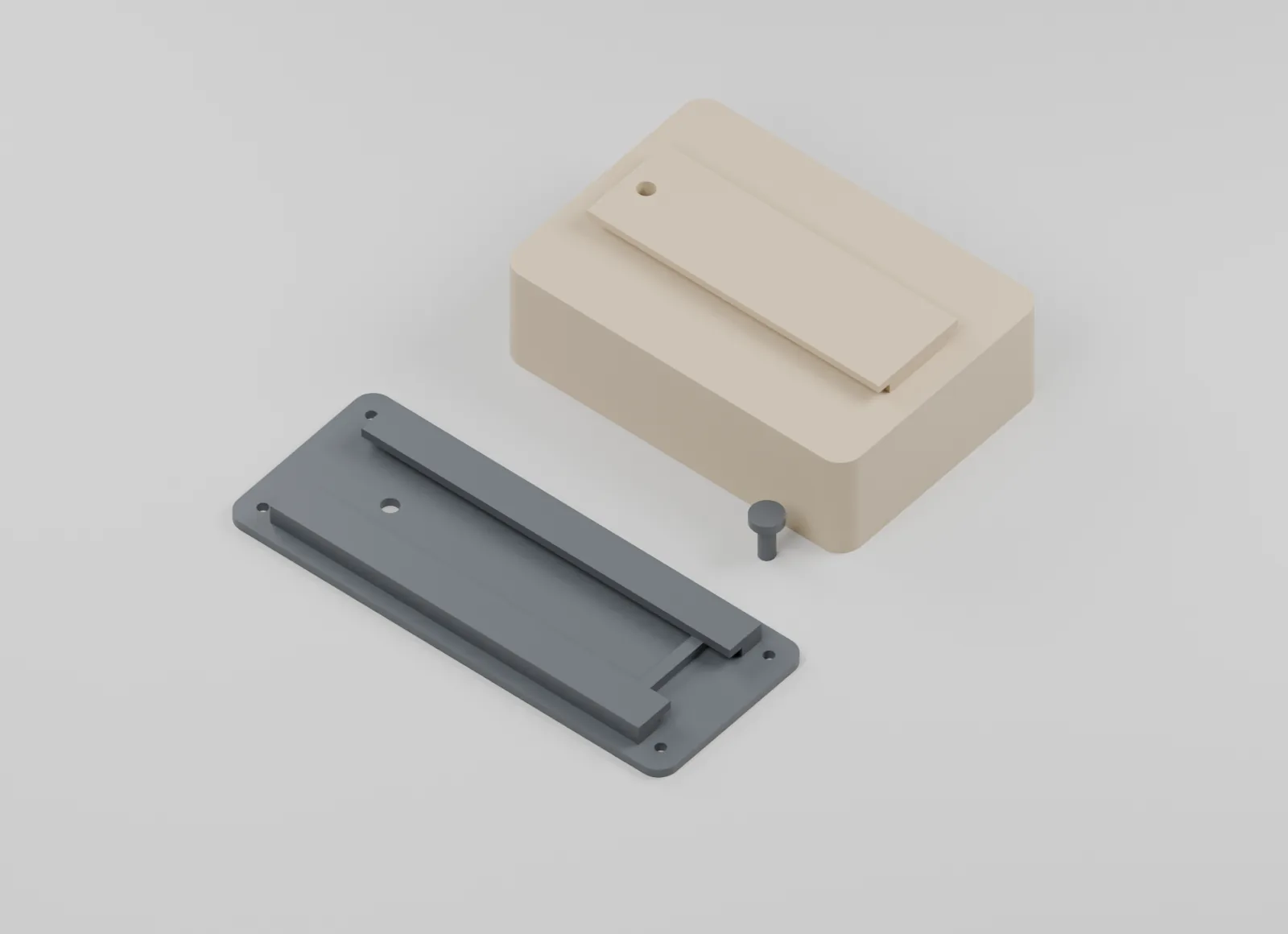

Tray underside beside the mounting channel — The T rail and its receiving channel.

Define the release direction

The channel lips hold the rail vertically while the end stop sets its travel limit. Removing the indexing pin lets the tray slide back out.

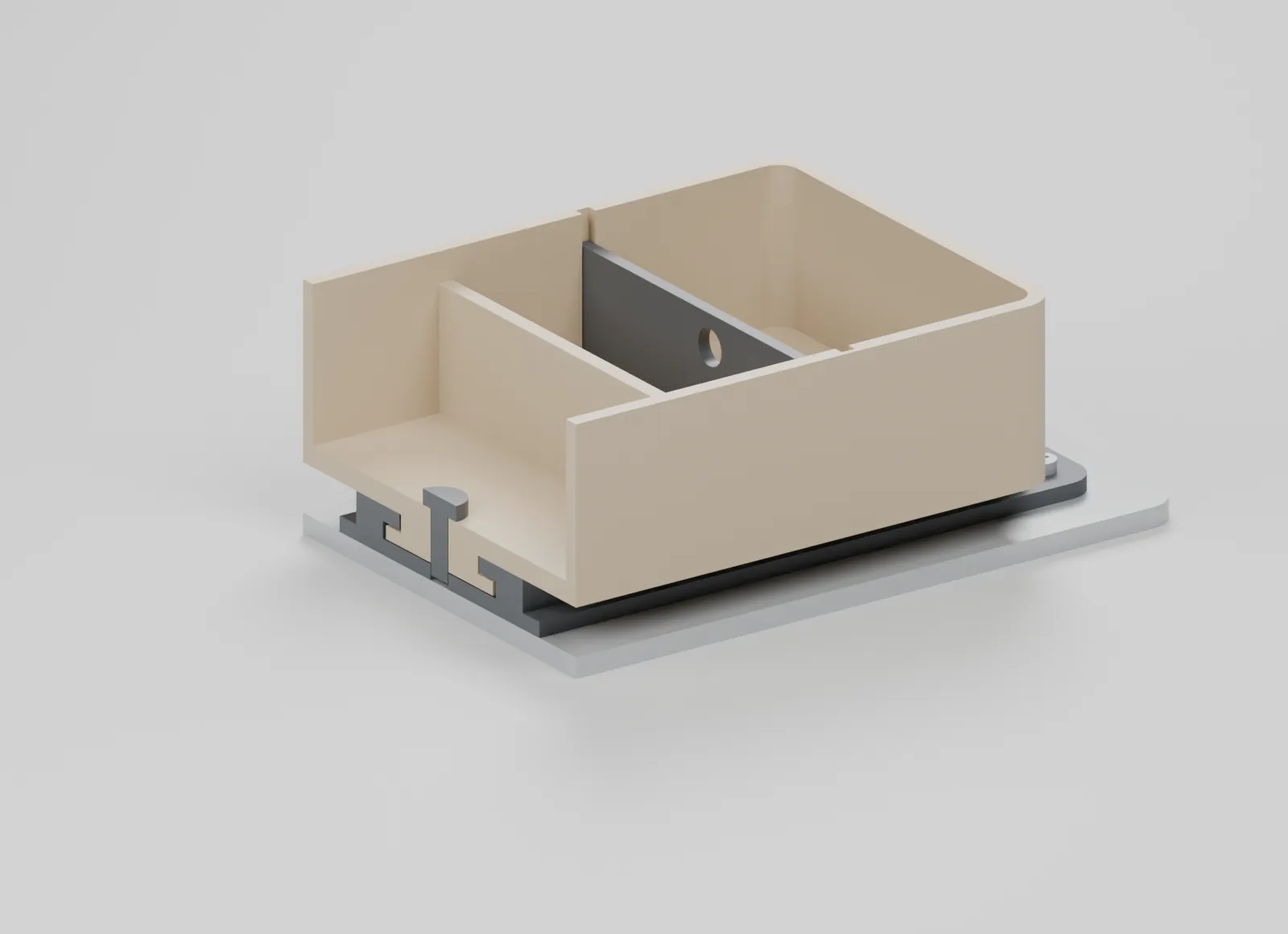

Section through organizer rail and indexing pin — The rail, pin and channel in section.

Change the compartments

One divider lifts from side tracks while a second divider remains integral to the tray. The reference mounting panel shows the separate attachment footprint.

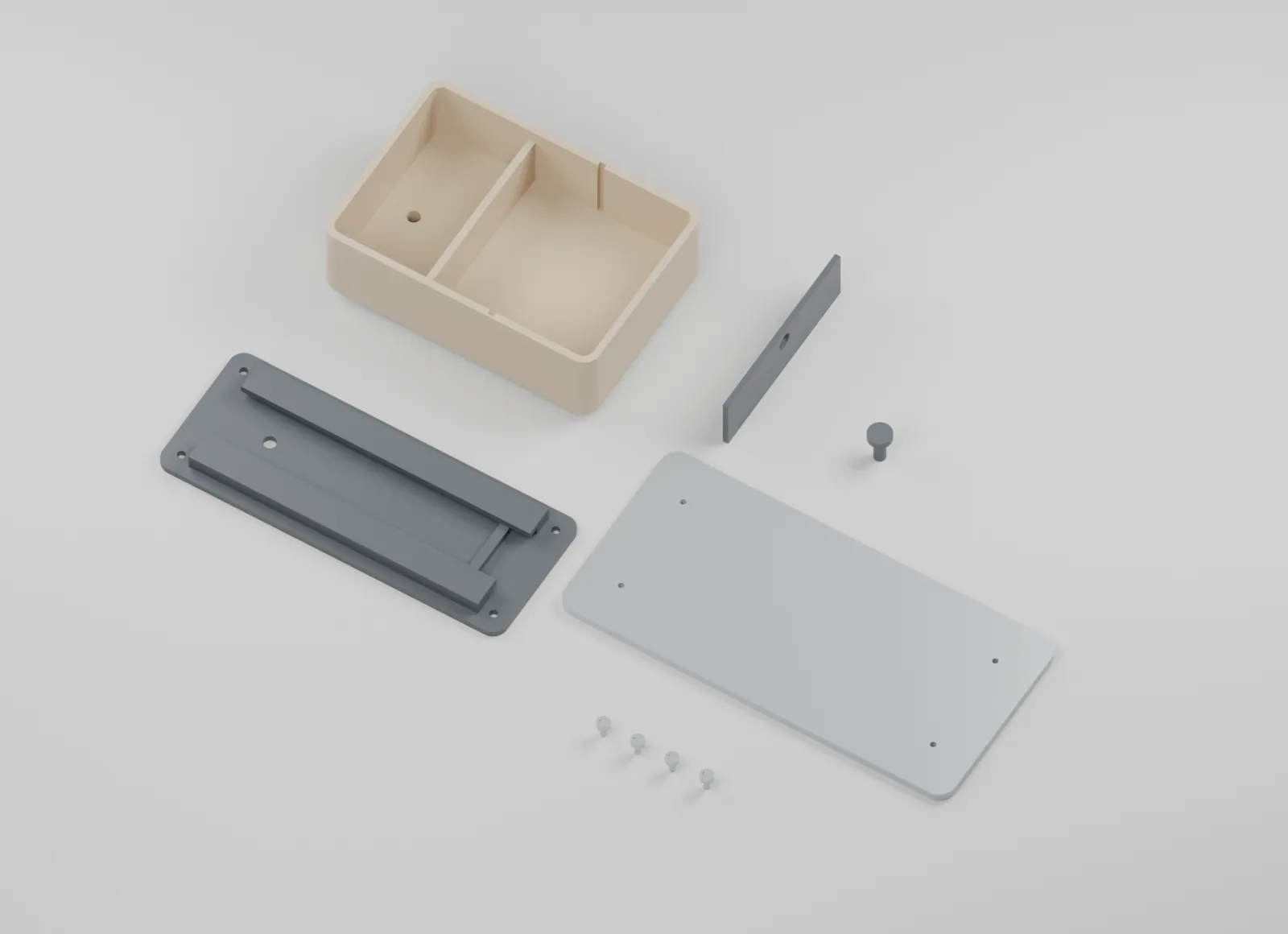

Organizer parts and reference panel arranged separately — The modular organizer components.

Connect storage and access

The original console study combines divided storage with a mount that stays in place when the tray is removed.

Rendered workshop scene of the original organizer — The assembled modular organizer.
