HVAC sensor bracket with removable cover

Home / Design studies / HVAC sensor bracket with removable cover

A wall bracket carries an original sensor envelope beneath a slotted, removable cover.

An original Vekform CAD design study, shown through CAD views and a rendered workshop scene.

Exploded view of hvac sensor bracket with removable cover — The wall bracket, removable cover and reference sensor shown separately.

Positioning the reference sensor

A projecting shelf and vertical back plate define the mounting geometry. A separate slotted cover surrounds the original cylindrical sensor reference.

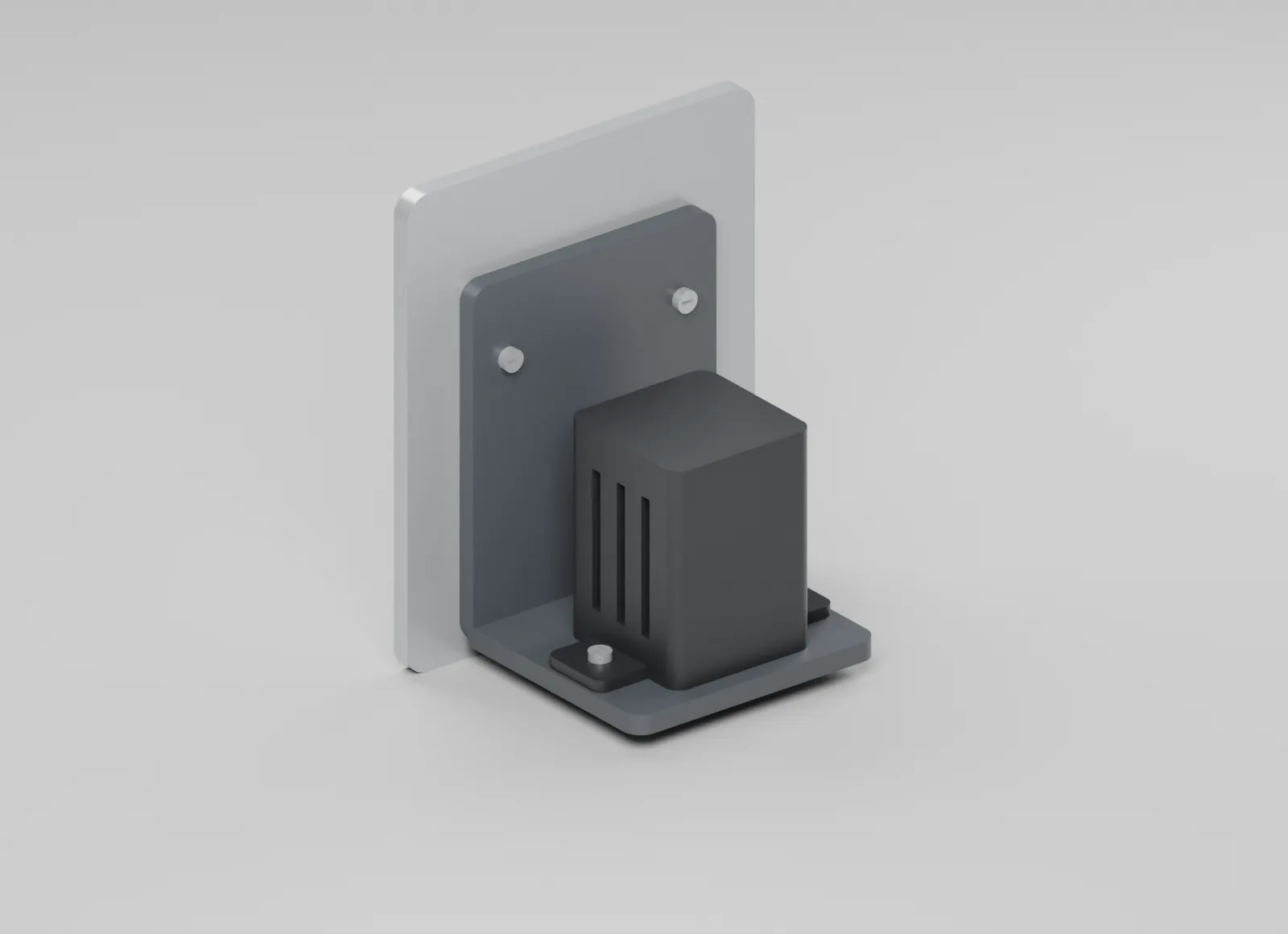

Assembled sensor bracket and removable cover — The sensor cover on its projecting shelf.

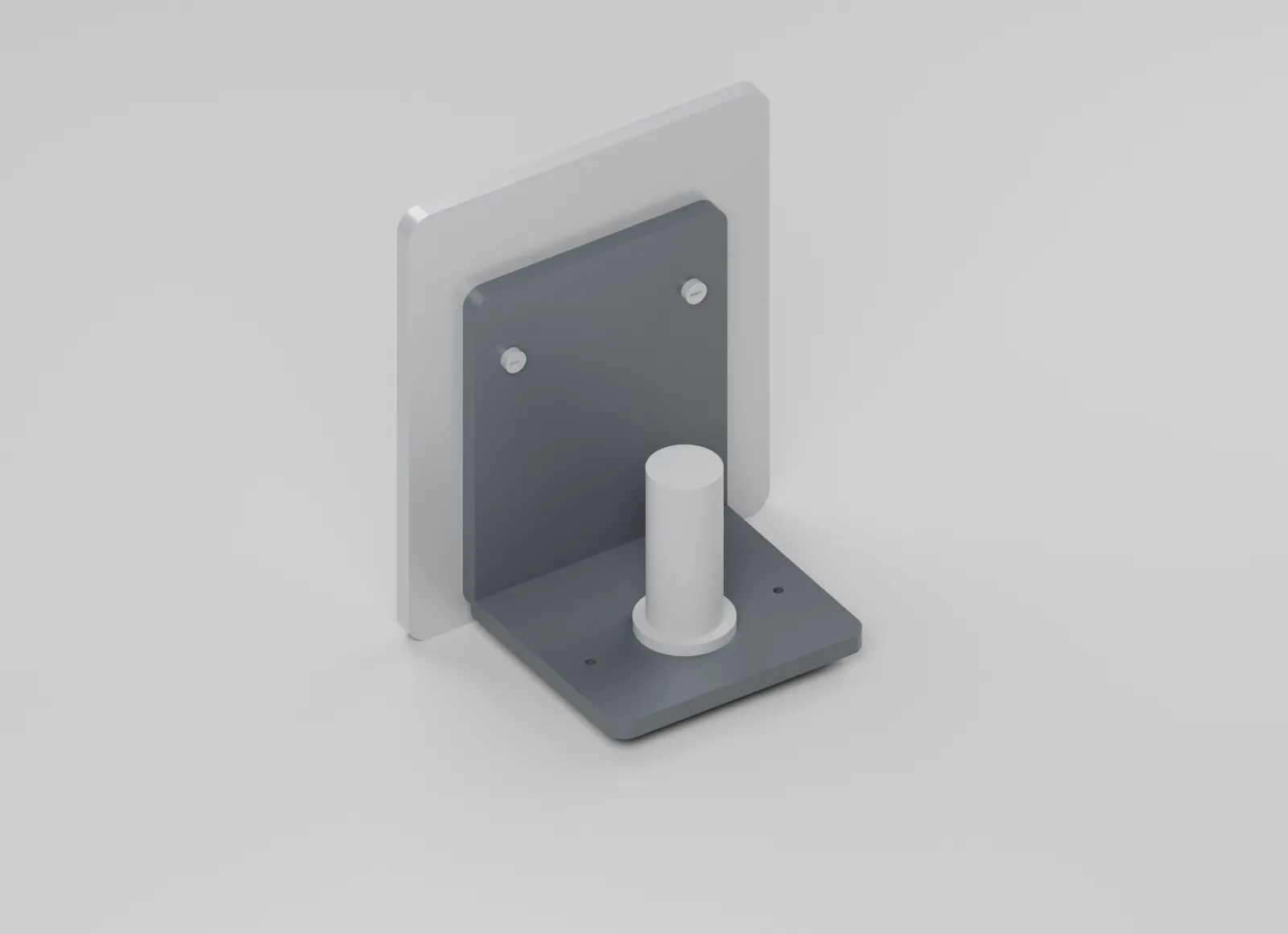

Bracket with sensor cover removed — The sensor envelope and mounting shelf.

Reach the cover fasteners

Two side tabs seat directly on the shelf. Their upward-facing screws remain accessible beside the cover walls.

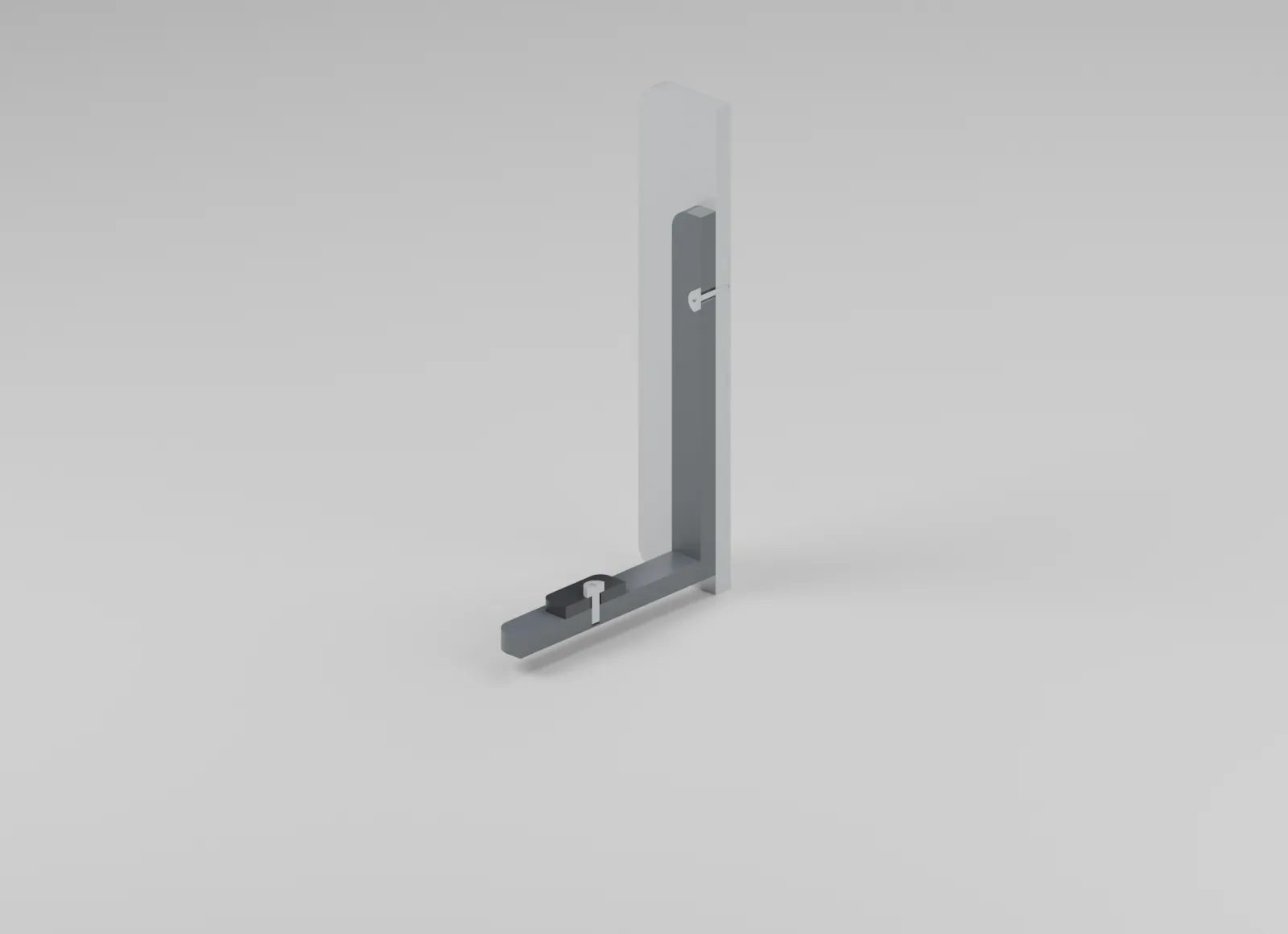

Section through cover tab and shelf fastening — The cover tab and shelf in section.

Separate mounting from service

The cover lifts vertically from the sensor while the wall bracket stays attached. The original reference wall panel makes the mounting face visible.

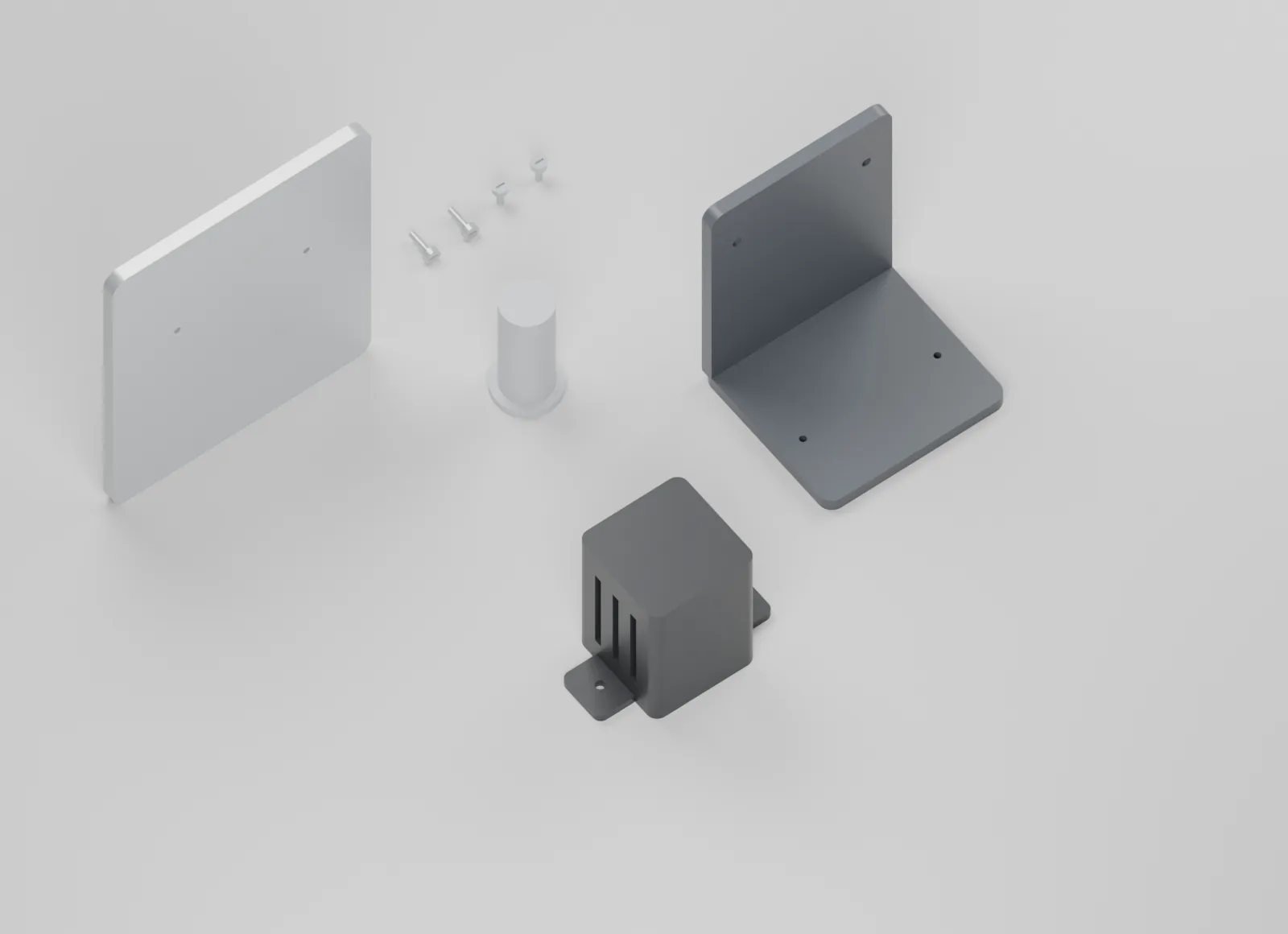

Bracket, cover, sensor and wall reference arranged separately — The separate sensor-bracket components.

Put the interfaces together

The complete study combines a wall attachment, sensor seat and removable slotted cover in one compact bracket.

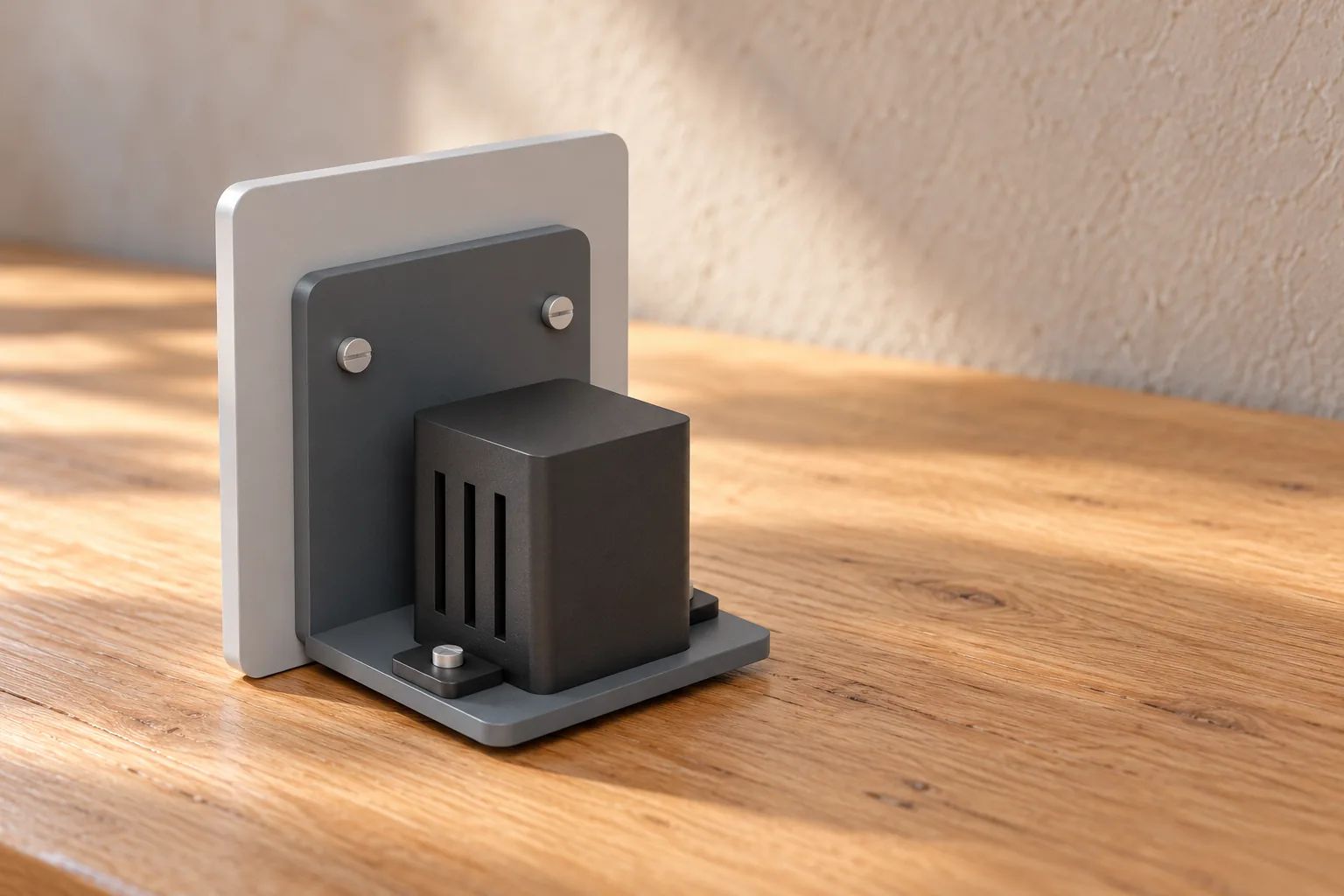

Rendered workshop scene of the original sensor bracket — The assembled sensor bracket.
