Three cable channels share a removable bridge, making the routing and access geometry visible together.

An original Vekform CAD design study, shown through CAD views and a rendered workshop scene.

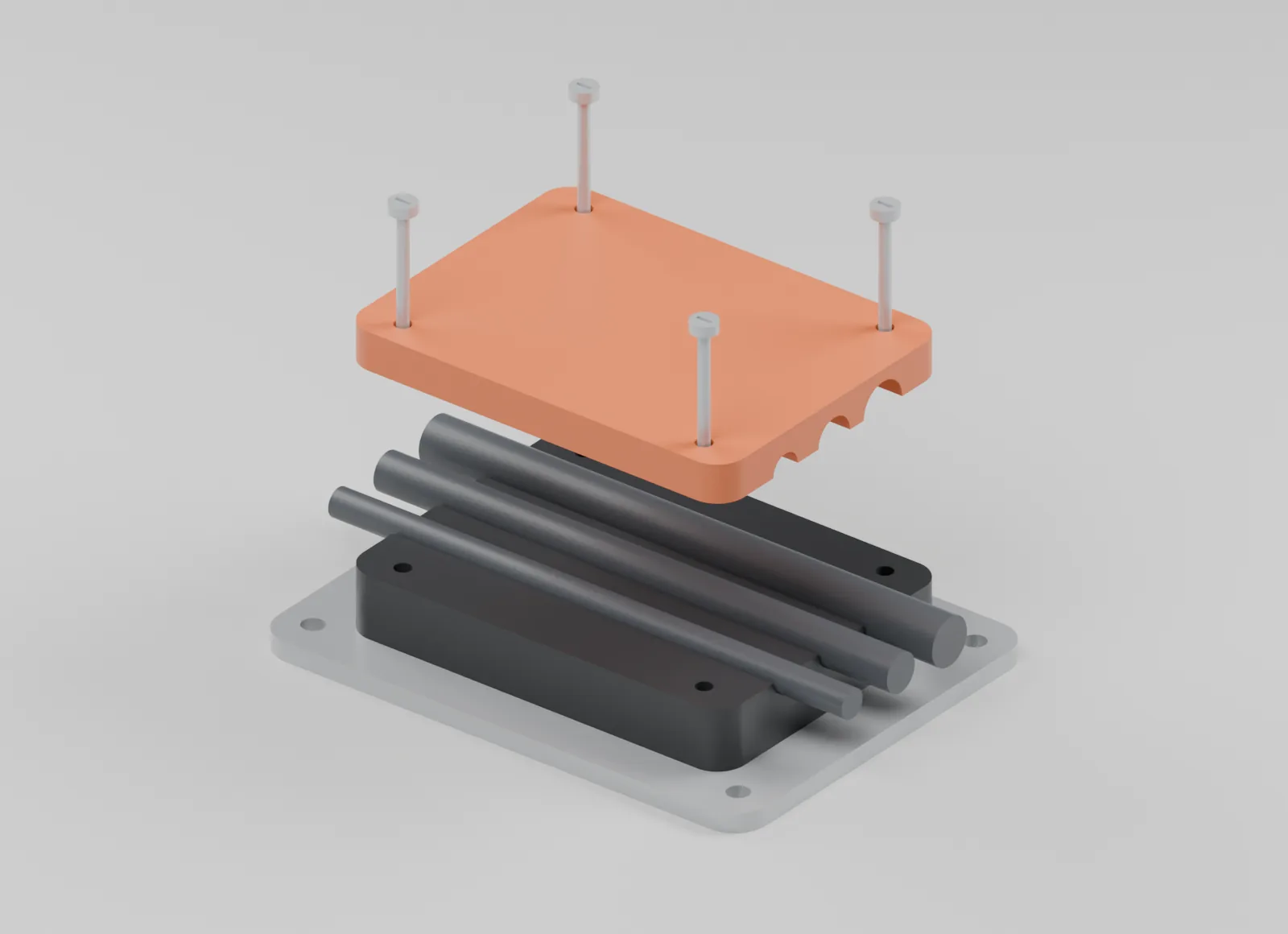

Exploded view of kayak accessory cable guide — The cable saddle, removable bridge, cable references and mounting panel.

Give each cable its own path

Three round channels follow original 6, 8 and 10 mm cable envelopes. The lower saddle establishes the routing while the separate bridge closes the top.

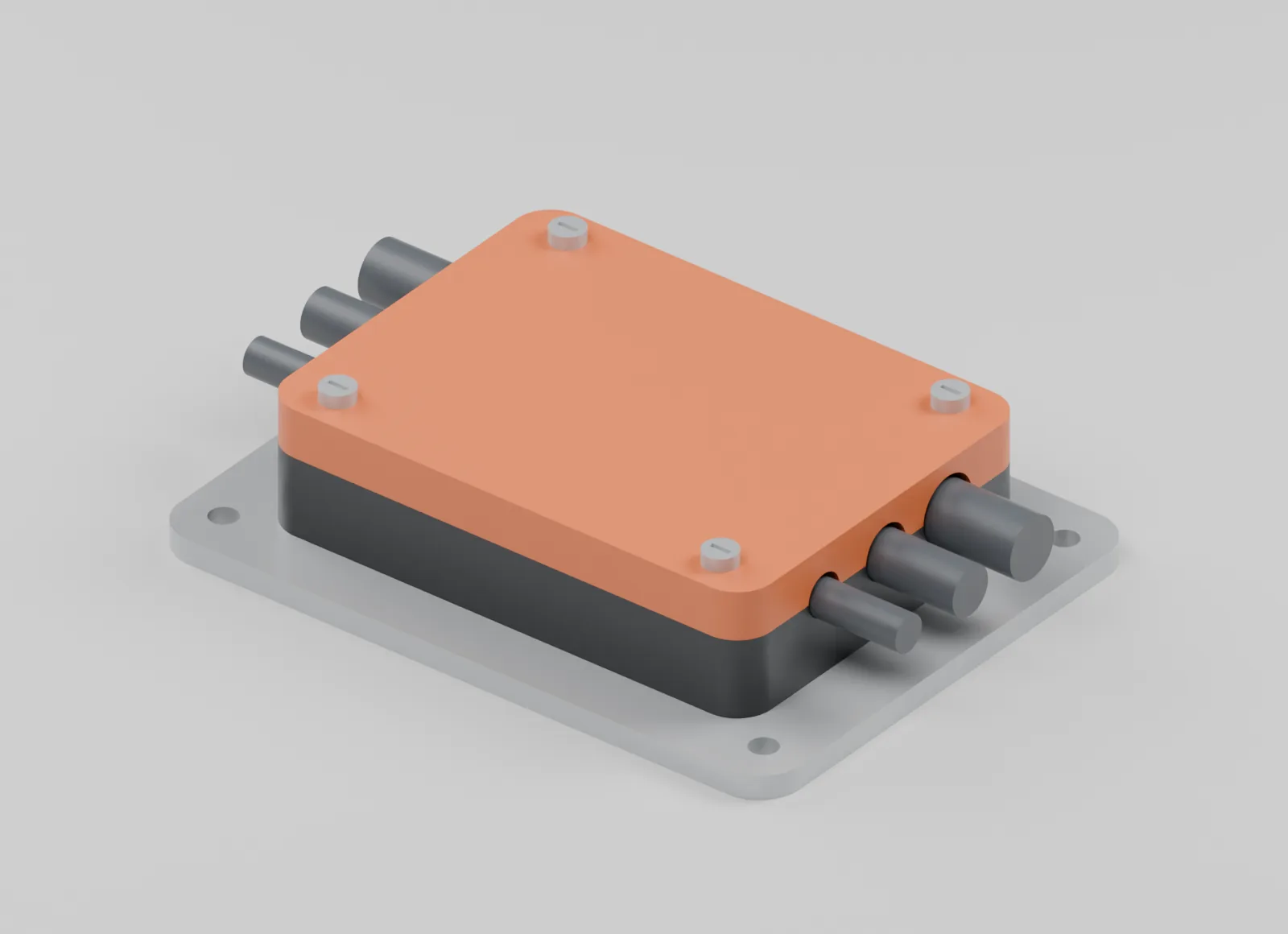

Assembled three-channel cable guide — Three cable sizes in one guide.

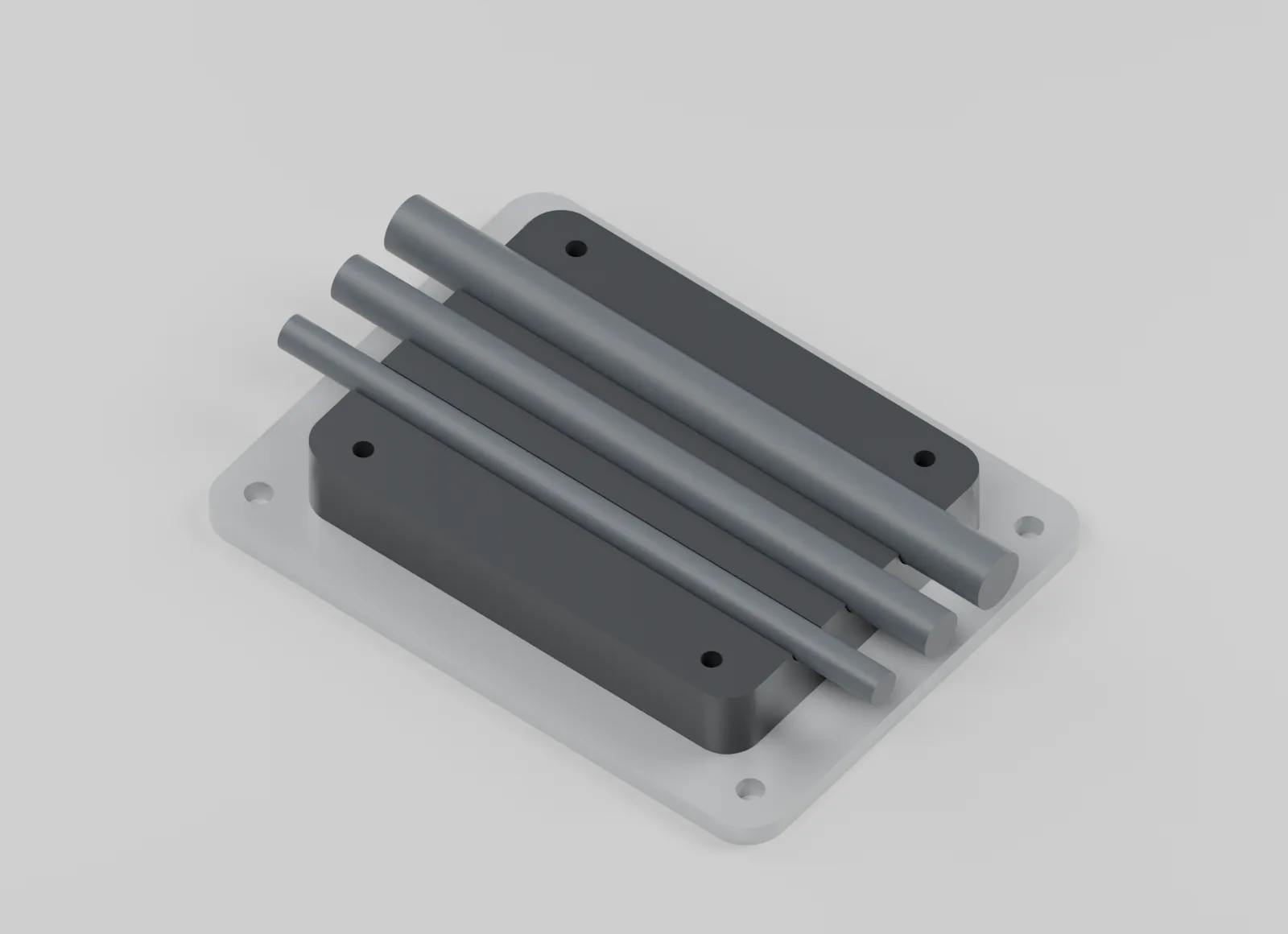

Guide with upper bridge removed — The open routing channels.

Separate guidance from access

Removing four fasteners lifts the bridge clear of the cables. A section across the channels shows the lower seats and clearance around each cable.

Section across three cable channels — The channel profiles in section.

Make the interface easy to follow

The saddle, bridge, reference cables and reference mounting panel share one defined arrangement. Cable withdrawal follows the open channel axes.

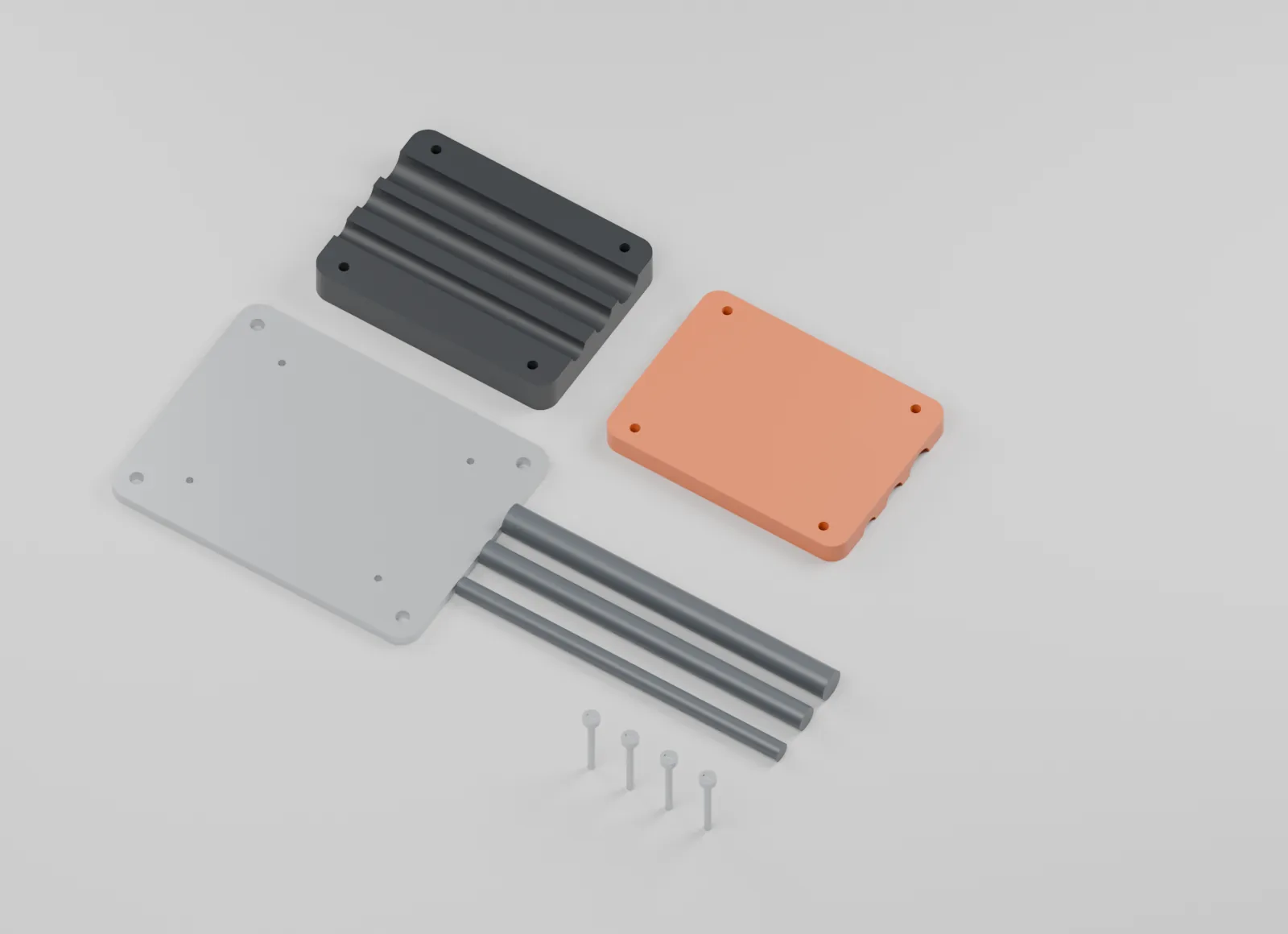

Cable-guide parts arranged separately — The guide and original reference pieces.

Place the assembly in context

The complete study brings mounting, cable spacing and service access into one accessory-routing concept.

Rendered workshop scene of the original cable guide — The assembled accessory cable guide.
