A raised rack frame accepts removable inserts above individual seats for original inert tube mockups.

An original Vekform CAD design study, shown through CAD views and a rendered workshop scene.

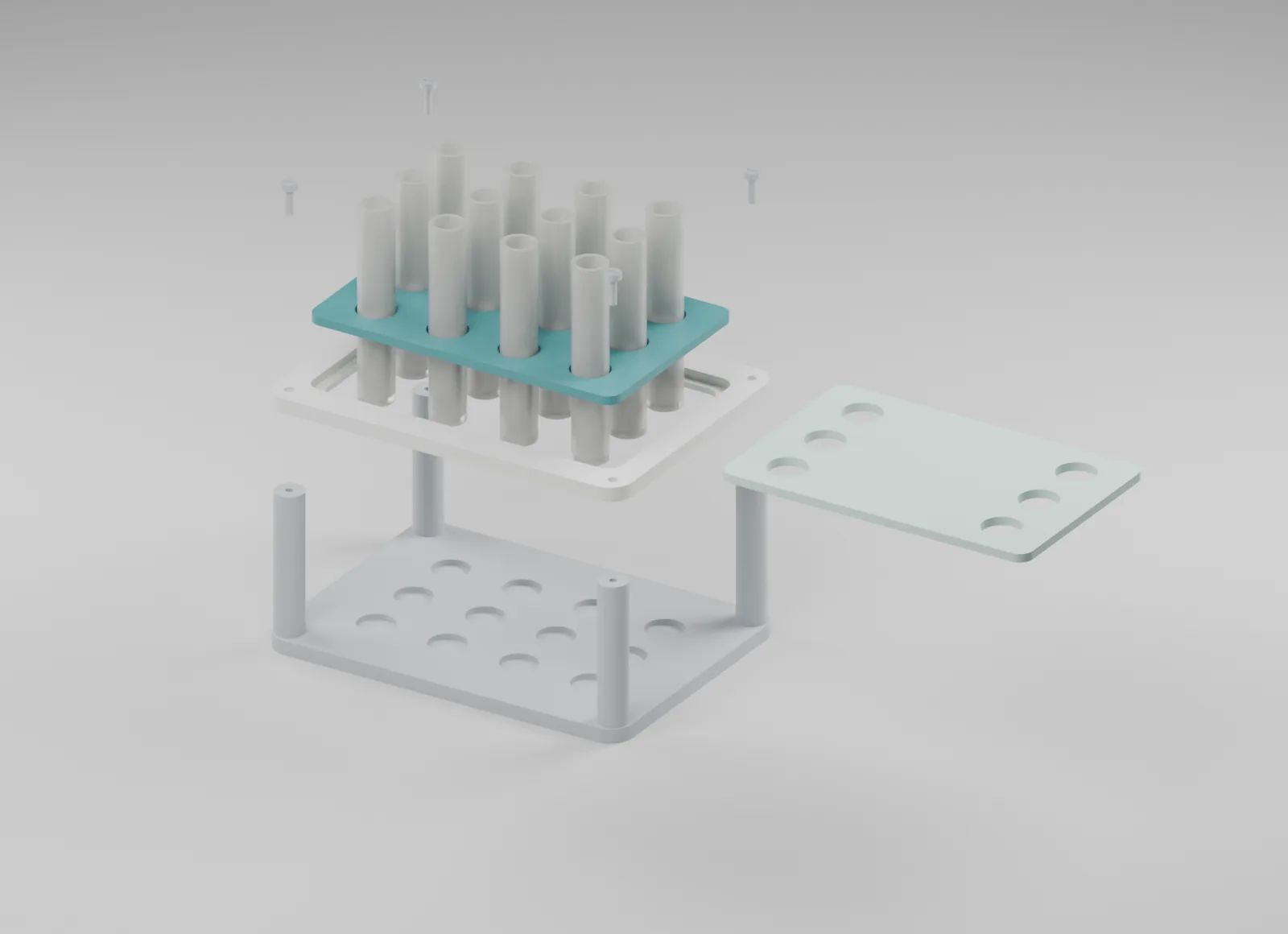

Exploded view of laboratory rack with inert tube mockups — The rack plates, posts, interchangeable inserts and empty tube references.

Support each tube at two levels

Individual lower seats carry twelve inert tube mockups. A removable upper insert spaces their openings inside the raised frame.

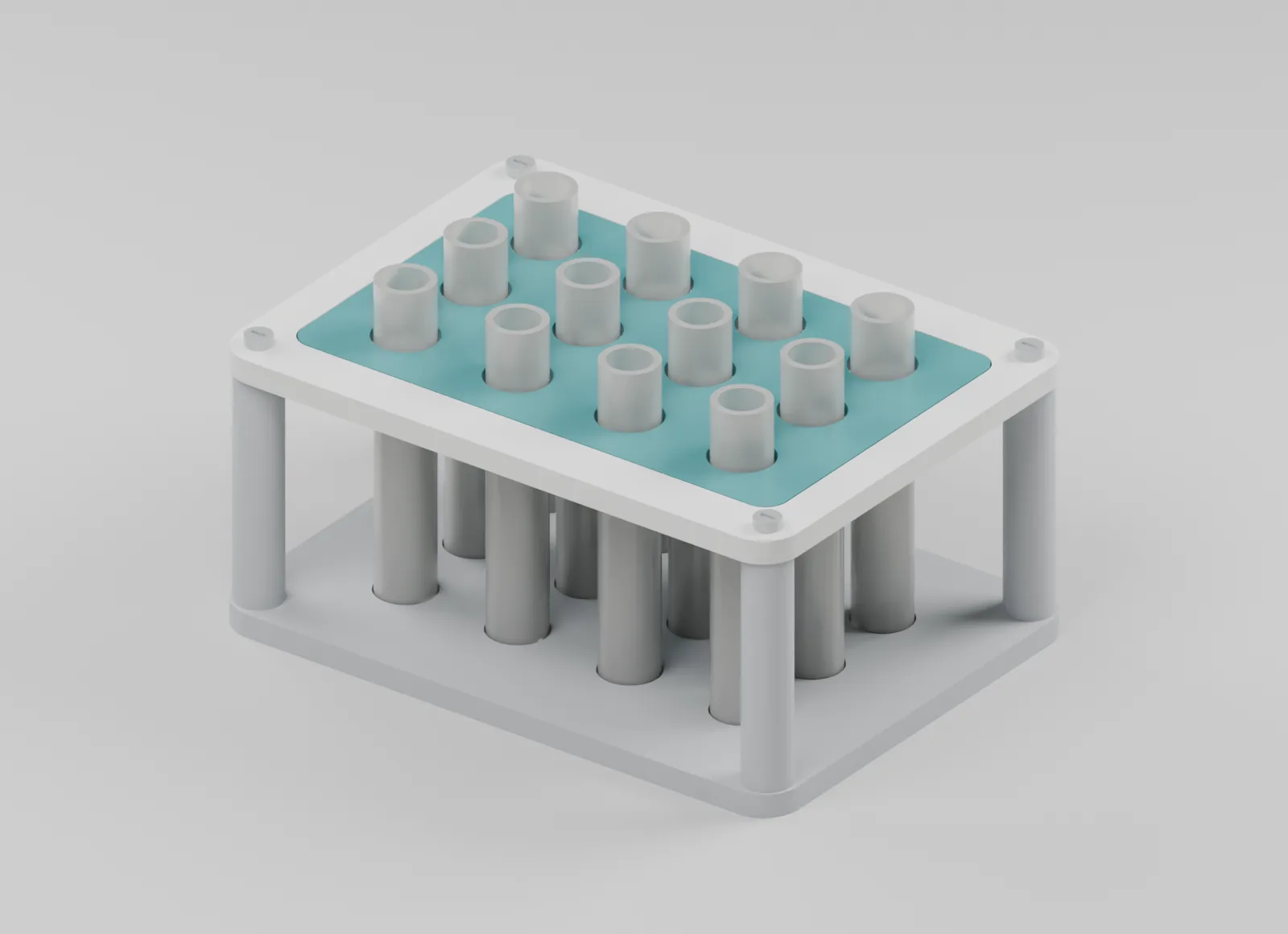

Rack with twelve original inert tube mockups — The rack and its two support levels.

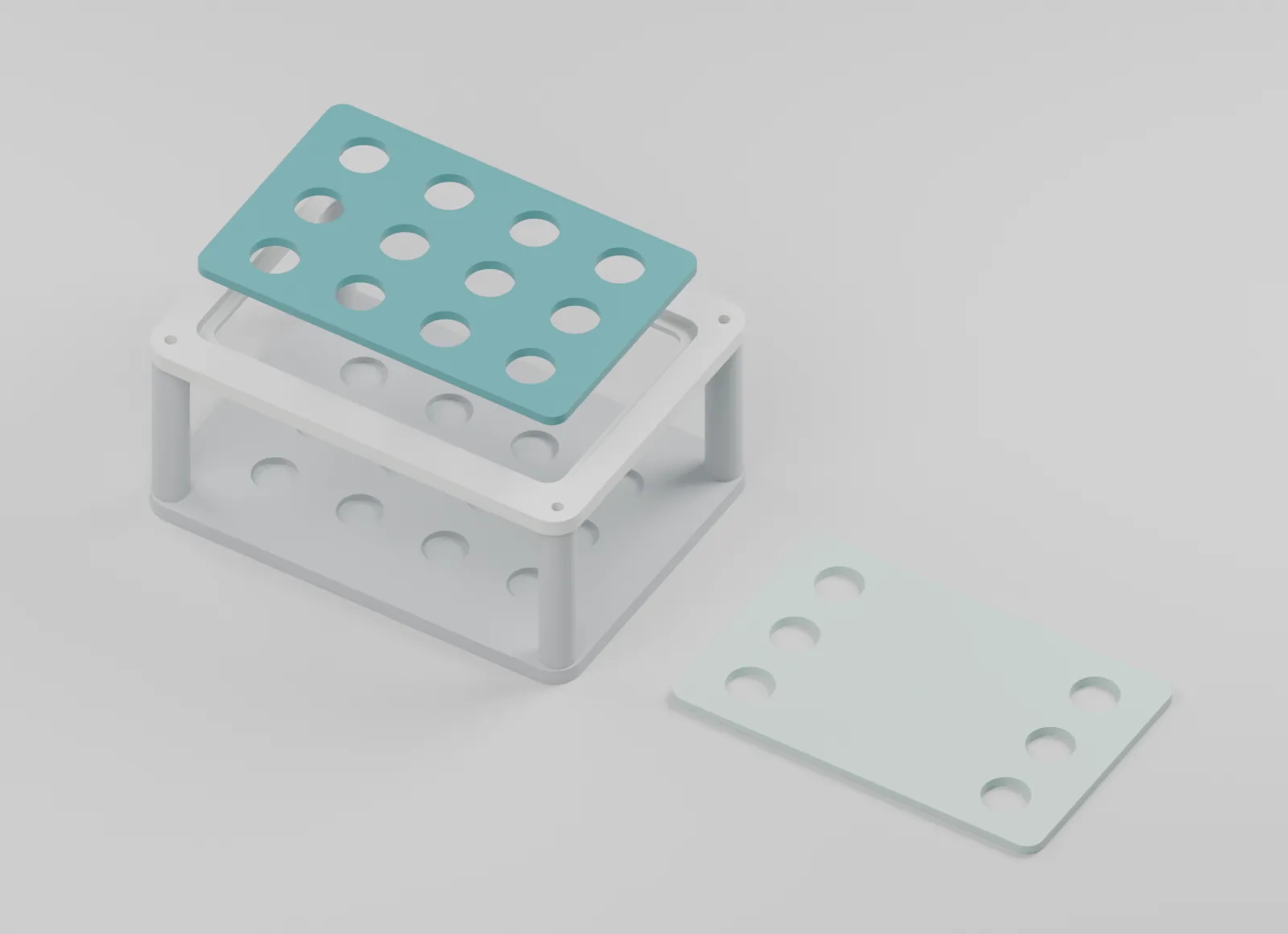

Upper insert lifted beside an alternative insert — The removable and alternative inserts.

Show the support surfaces

The section follows the tube bottoms, base seats and upper guide openings. The insert rests on a recessed ledge in the frame.

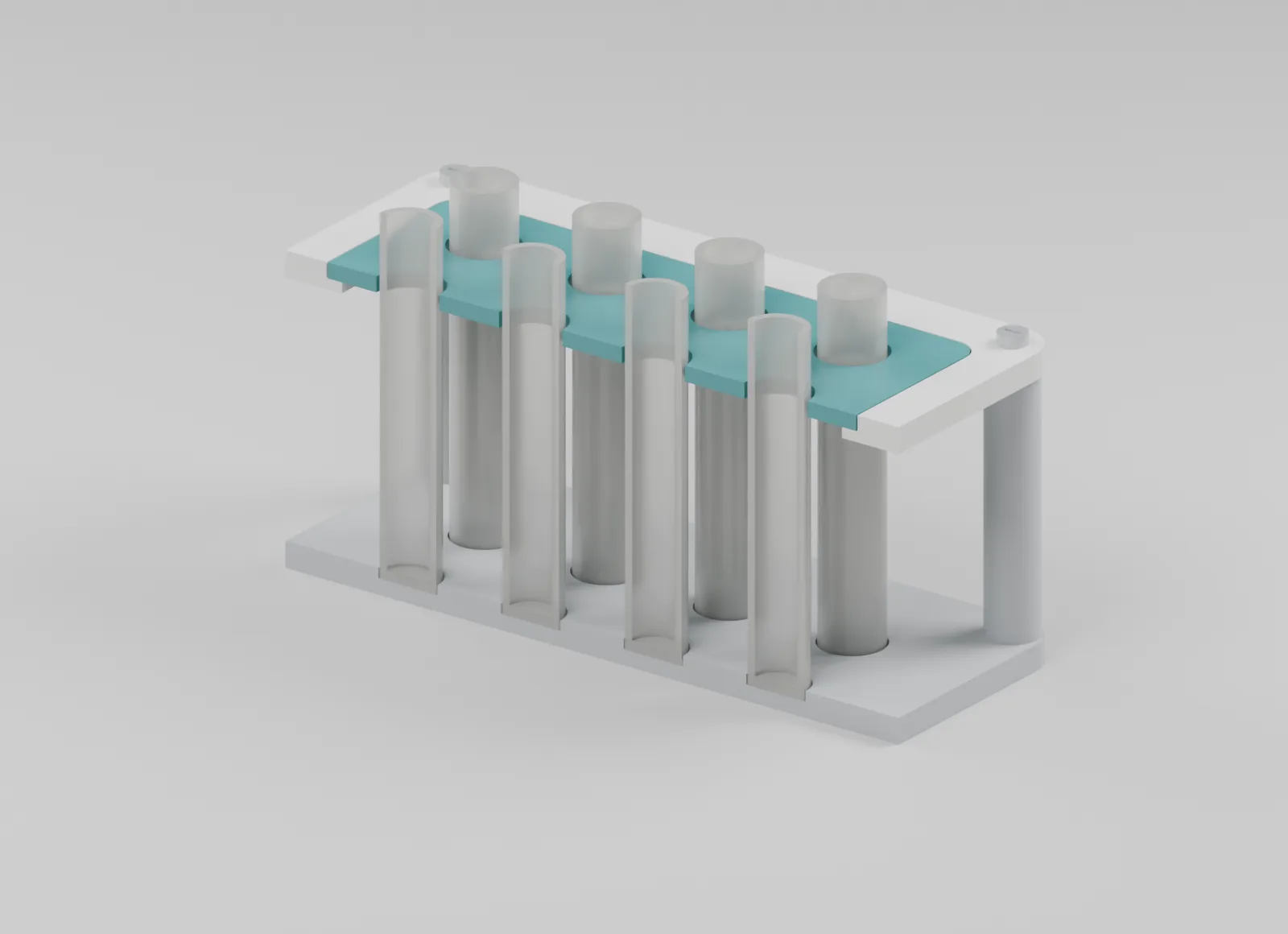

Section through tube seats and upper insert — The lower seats and upper guide openings.

Exchange the upper pattern

The twelve-opening insert lifts out after the tube mockups are removed. A six-opening alternative uses the same outer ledge and aligns with the two outer columns of lower seats.

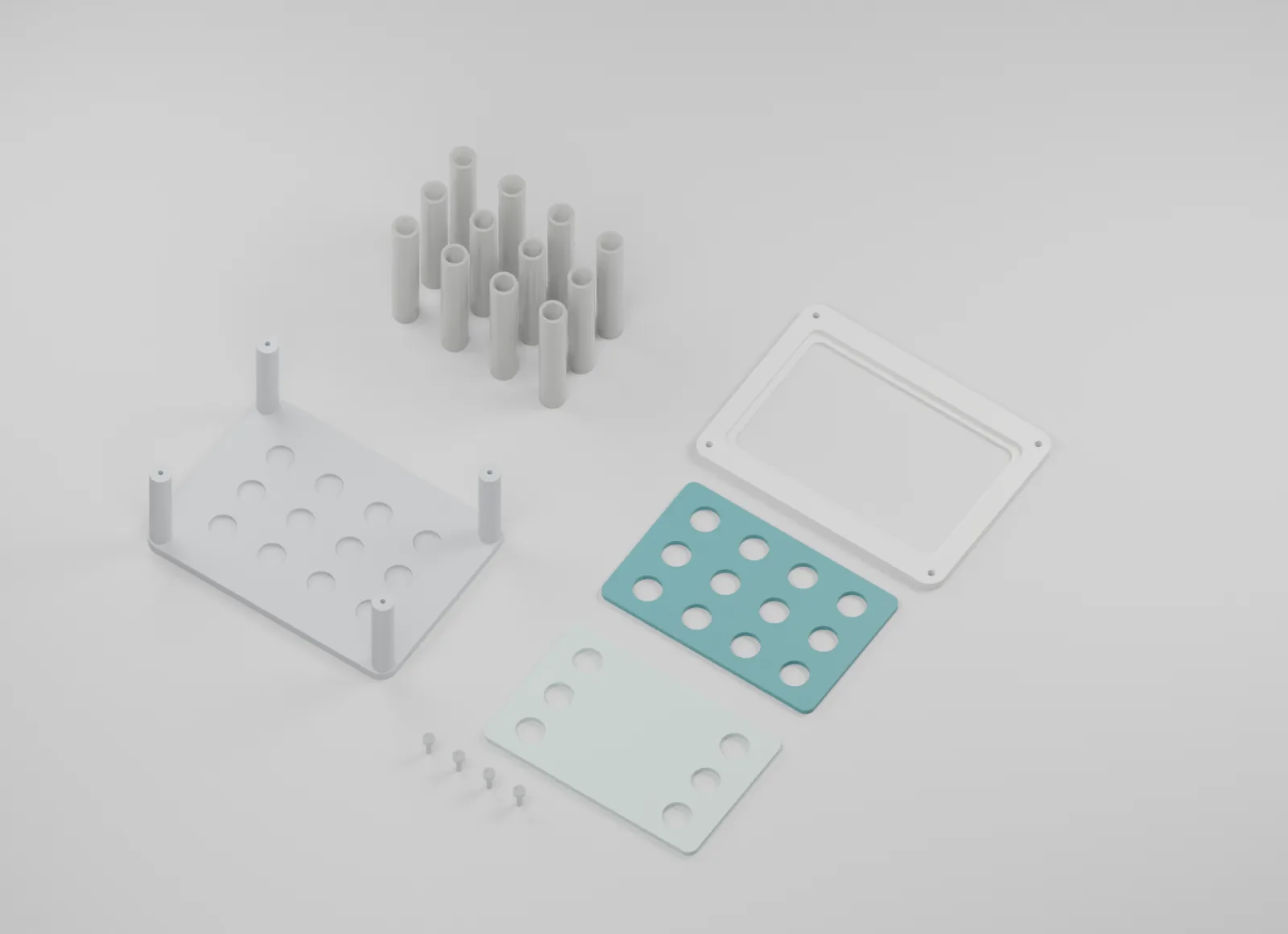

Rack parts, inserts and inert mockups arranged separately — The rack, two inserts and original mockups.

Connect the arrangement to the bench

The lower tube seats and removable upper insert keep the two rack interfaces visible.

Rendered workshop scene of the original tube rack — The assembled rack and inert mockups.
