Marine-style instrument-panel bezel

Home / Design studies / Marine-style instrument-panel bezel

A recessed instrument opening, upper brow and removable rear frame define both sides of an original panel interface.

An original Vekform CAD design study, shown through CAD views and a rendered workshop scene.

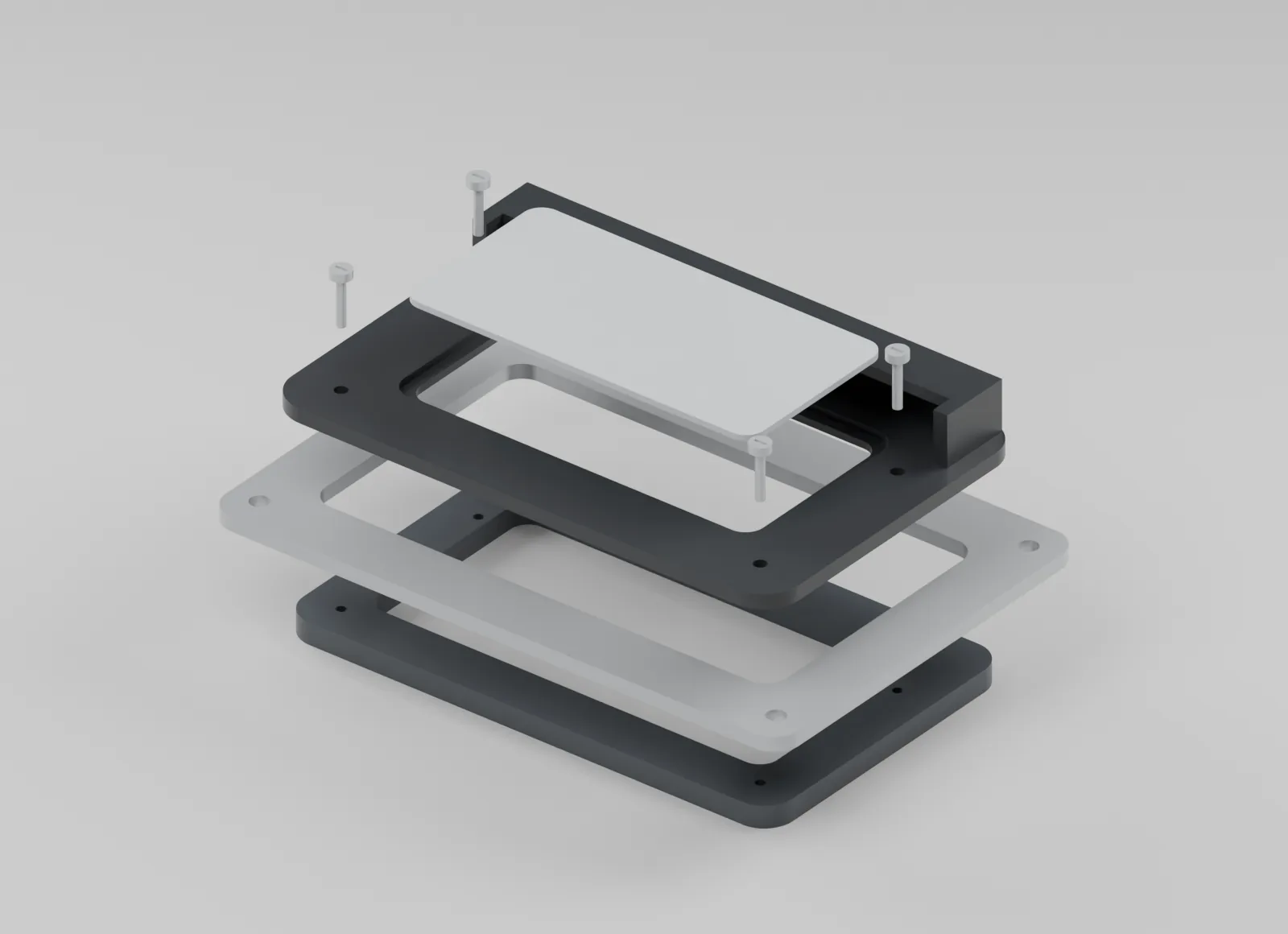

Exploded view of marine-style instrument-panel bezel
The fascia, rear frame, blank instrument and panel shown separately.

Define the instrument opening

A rectangular recess seats the original blank instrument envelope. The raised upper brow and short side returns extend the surrounding fascia.

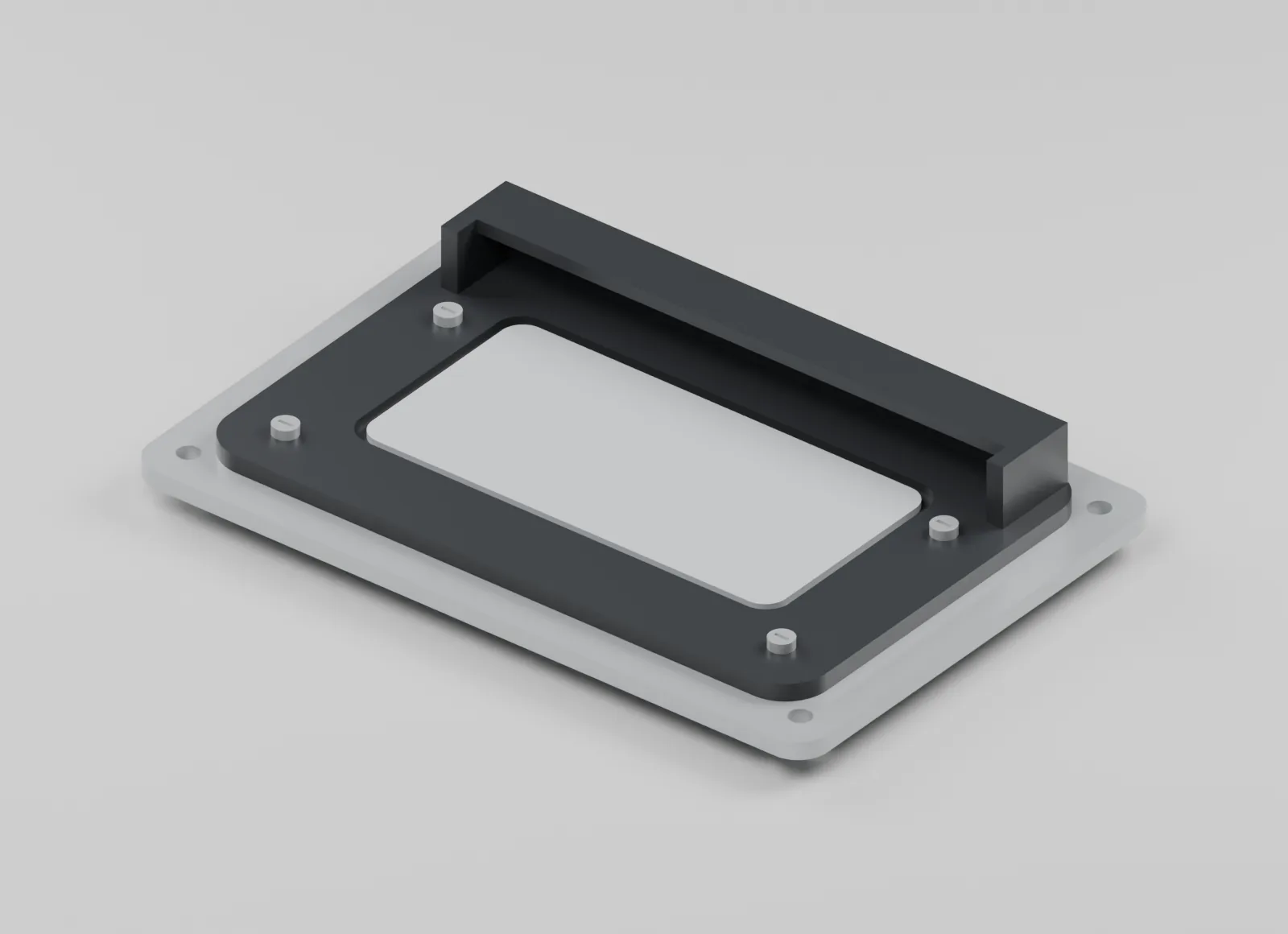

Assembled bezel on an original panel reference
The bezel and blank instrument reference.

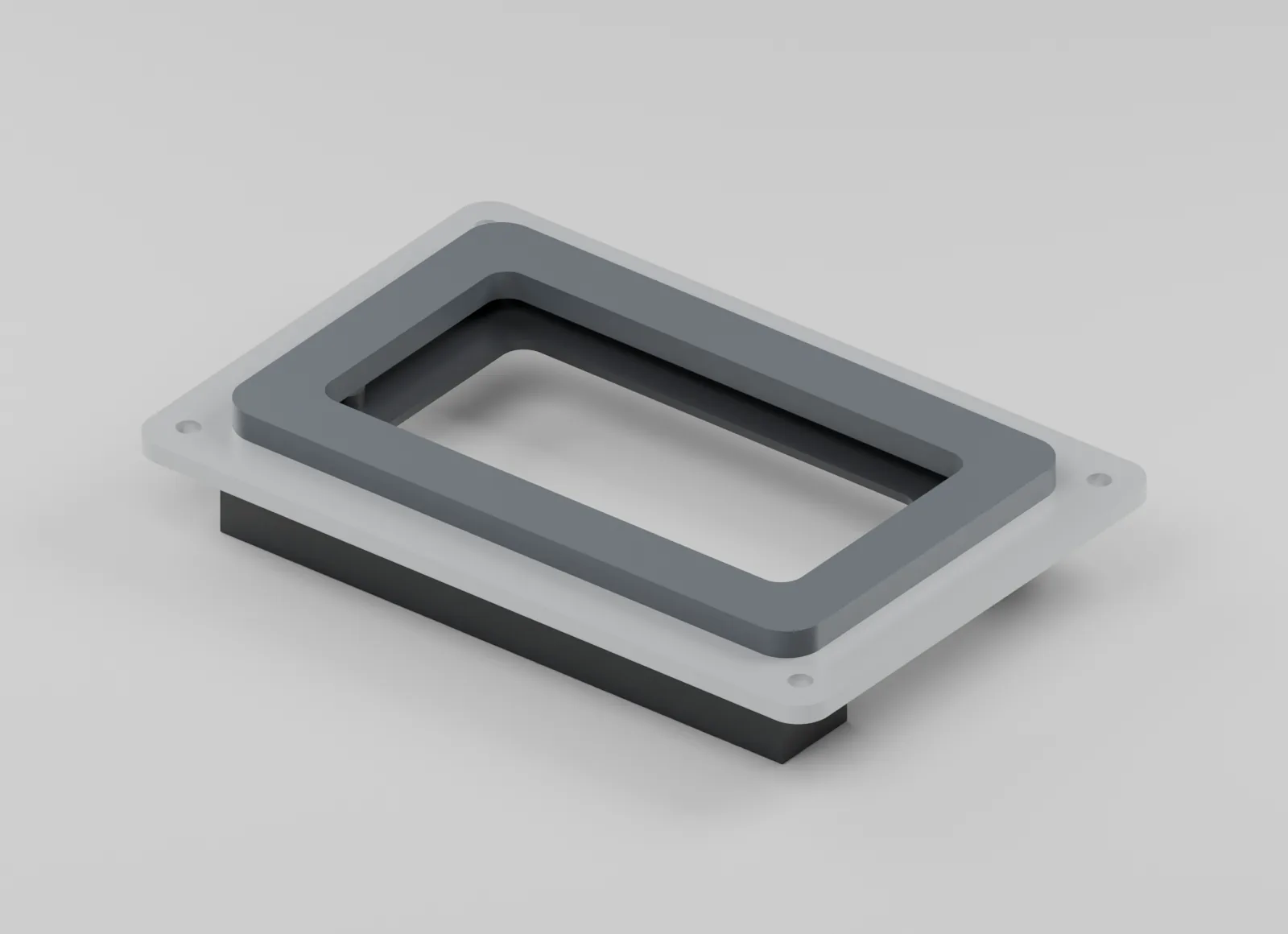

Rear clamp frame and panel interface
The removable frame behind the panel.

Capture the panel thickness

The front flange and rear frame meet opposite faces of a 4 mm panel reference. Four fastener positions connect the two components.

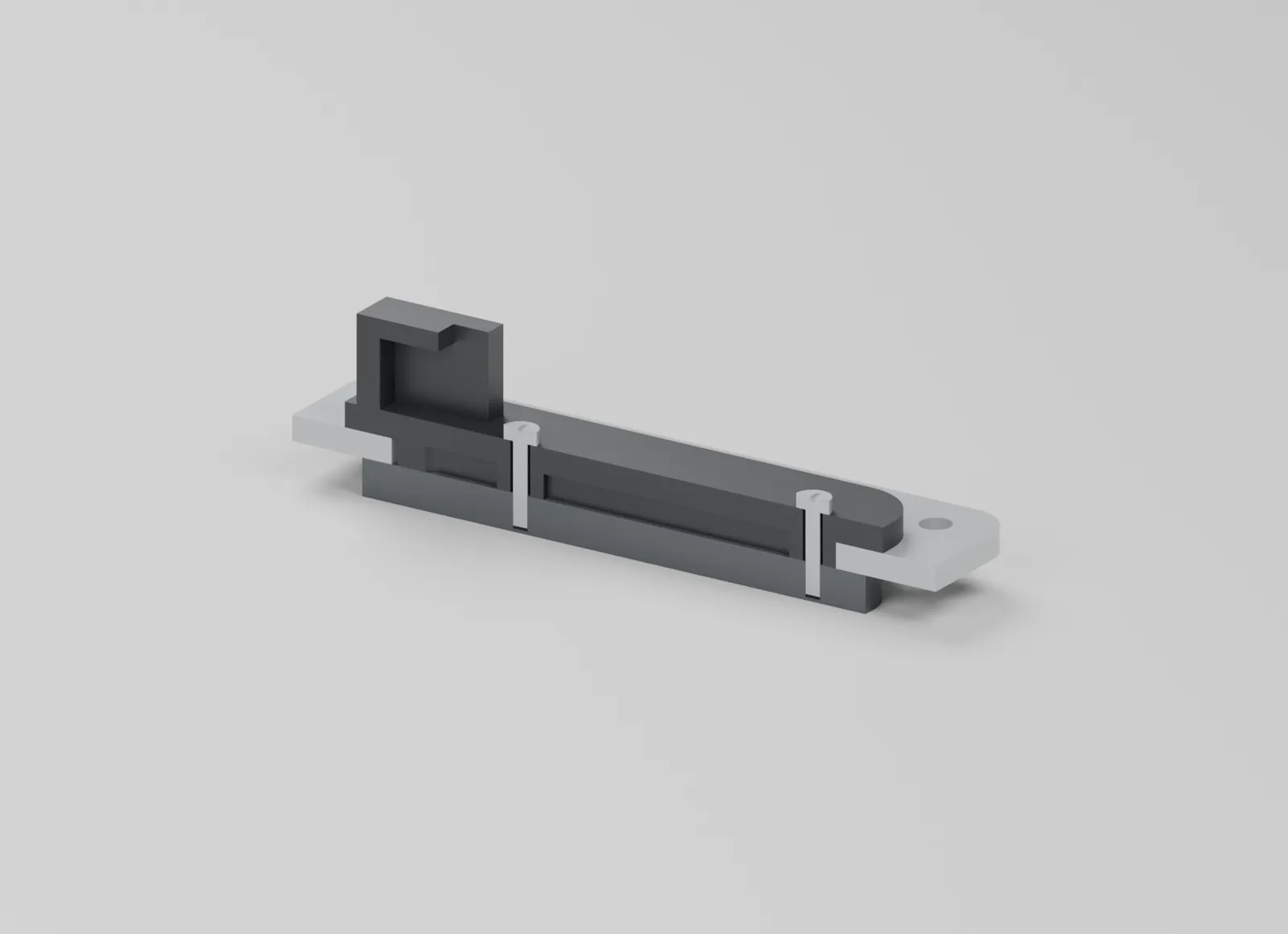

Section through bezel fastener and panel capture
The flange, panel and rear frame in section.

Keep the parts serviceable

The rear frame separates from the fascia, and the instrument envelope lifts from its ledge. Each contact surface has a defined place in the assembly.

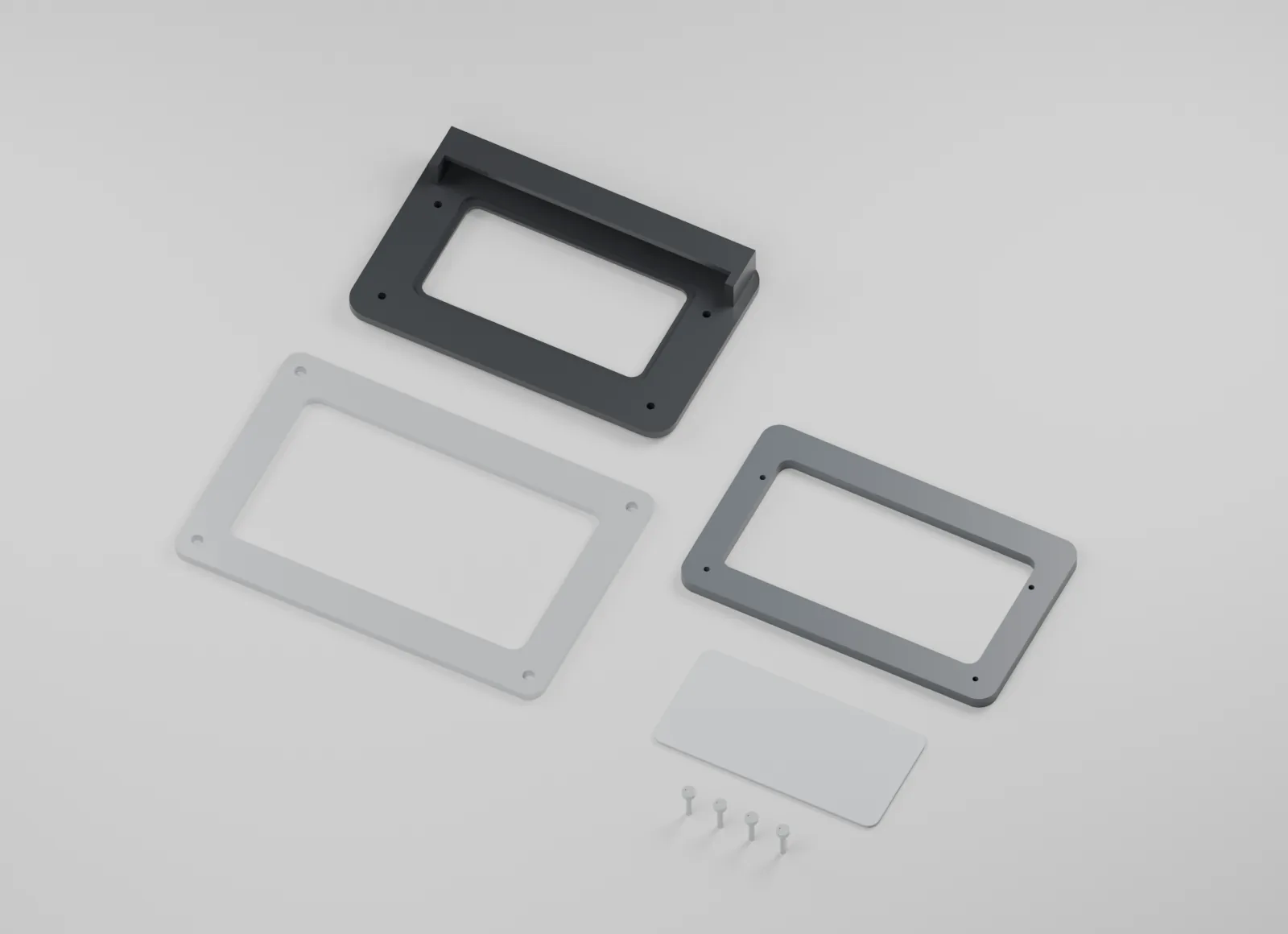

Bezel components and original references arranged separately
The separate bezel components.

Connect the shape to its setting

The complete study brings the front opening, raised brow and rear attachment into one instrument-panel design.

Rendered workshop scene of the original instrument bezel
The assembled instrument bezel.
