Industrial tooling / DESIGN STUDY

Packaging-line guide and changeover interface

Home / Design studies / Packaging-line guide and changeover interface

Two removable guide cassettes locate on a shared base around an original dummy package envelope.

An original Vekform CAD design study, shown through CAD views and a rendered workshop scene.

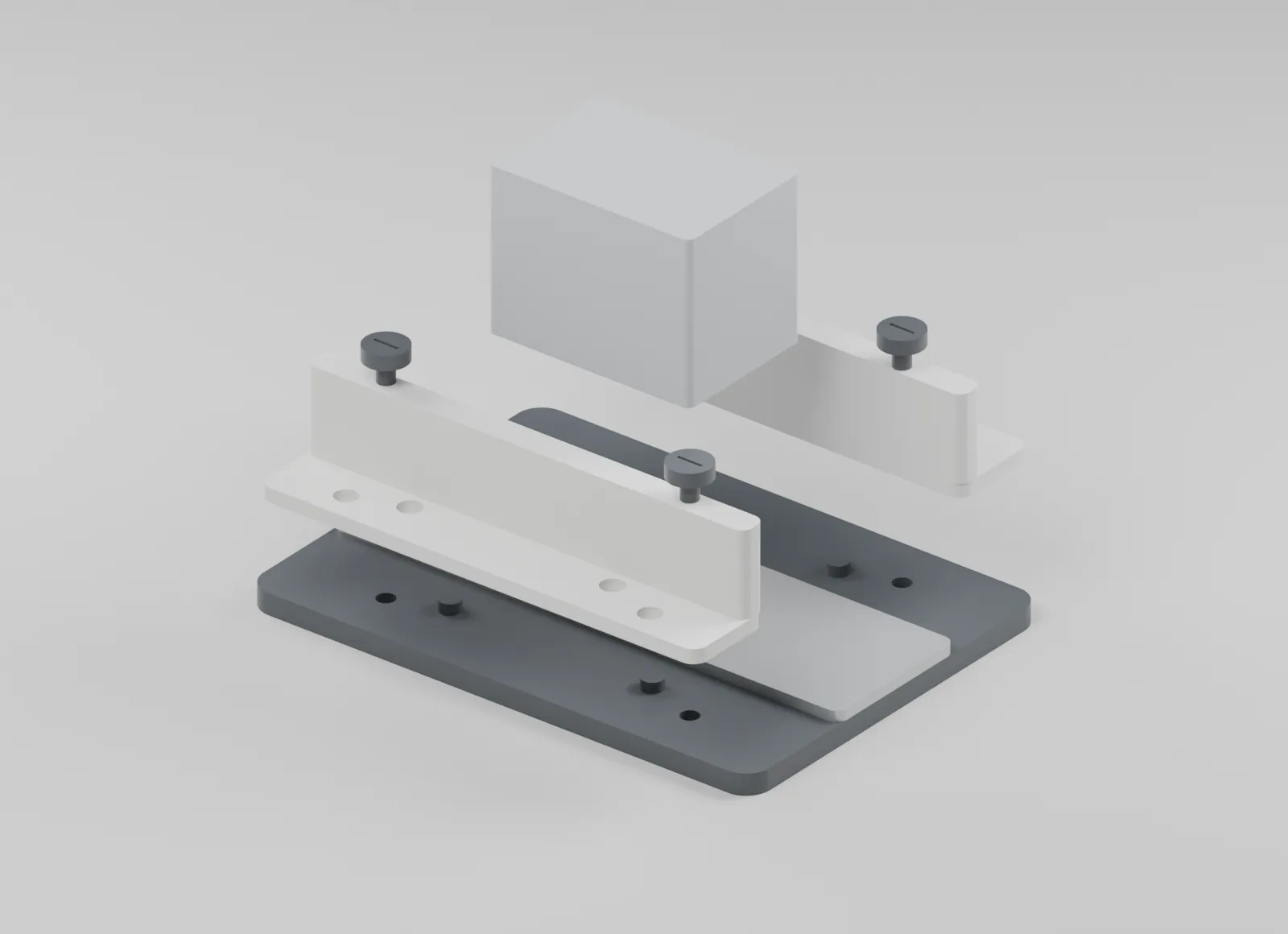

Exploded view of packaging-line guide and changeover interface
The guide fences, locating features and original track reference.

Guide a defined package envelope

Two raised guide rails flank an original rectangular package reference on a separate bed. The base provides a common location for both cassettes.

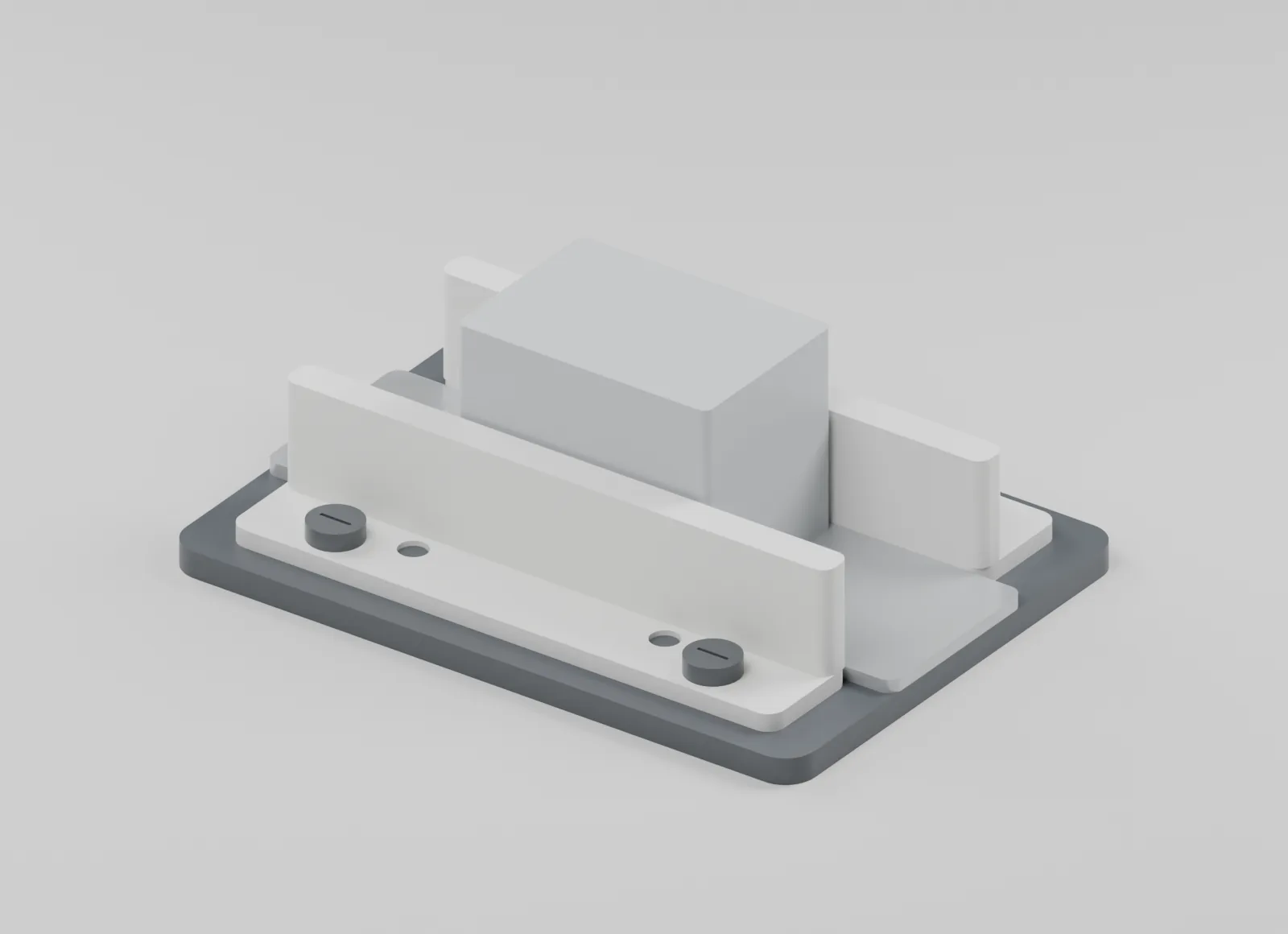

Guide assembly with original dummy package
The package envelope between the rails.

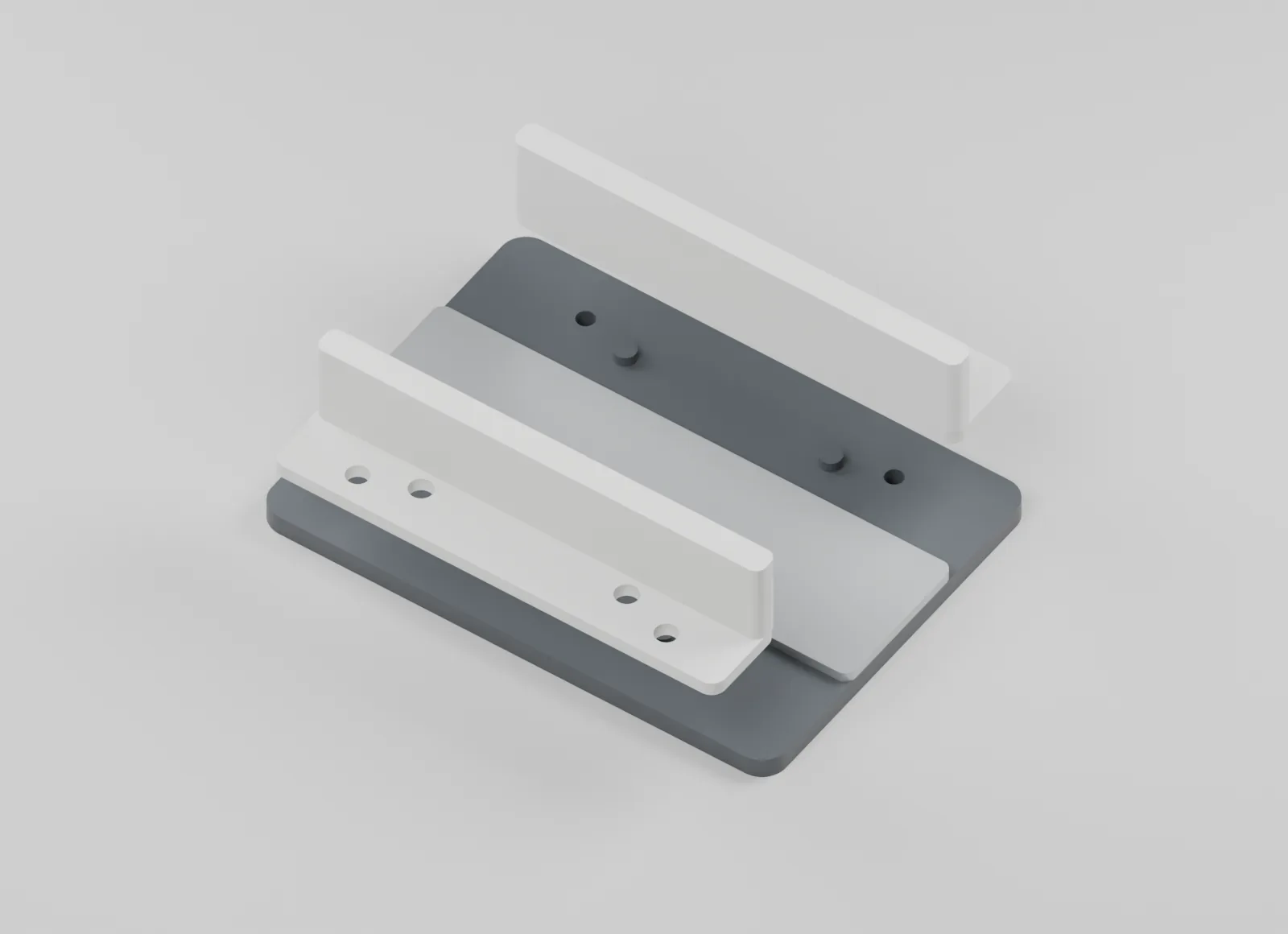

Raised guide cassettes exposing locating features
The locating pins beneath the guide feet.

Locate before tightening

Integral base pins enter clearance bores in each guide foot. Thumb-screw envelopes seat on the feet after the guide reaches the base.

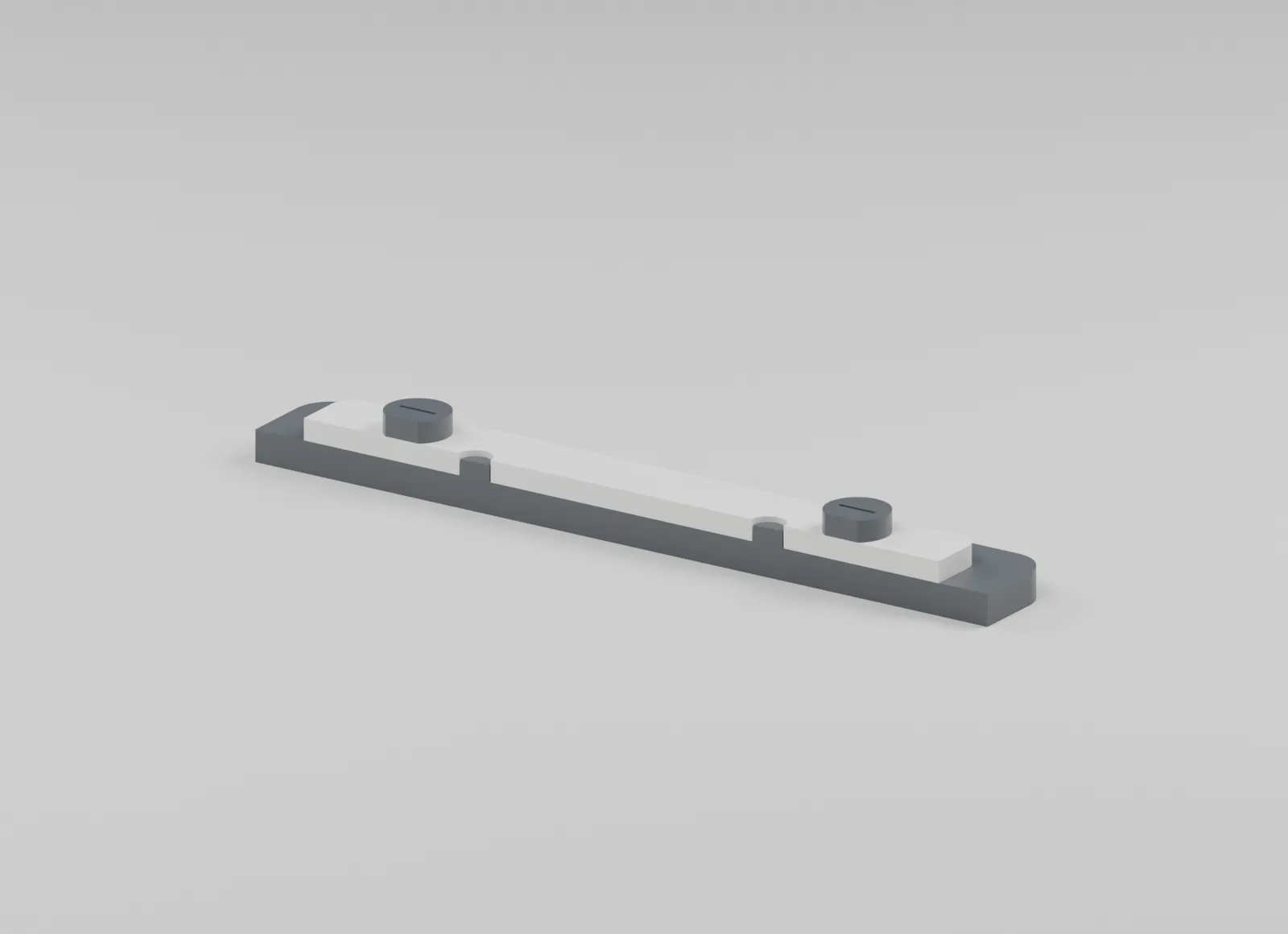

Section through guide-foot locating geometry
The guide foot and locating interface.

Make changeover visible

Each guide lifts away after its two fasteners are removed. The package follows a straight path along the rails.

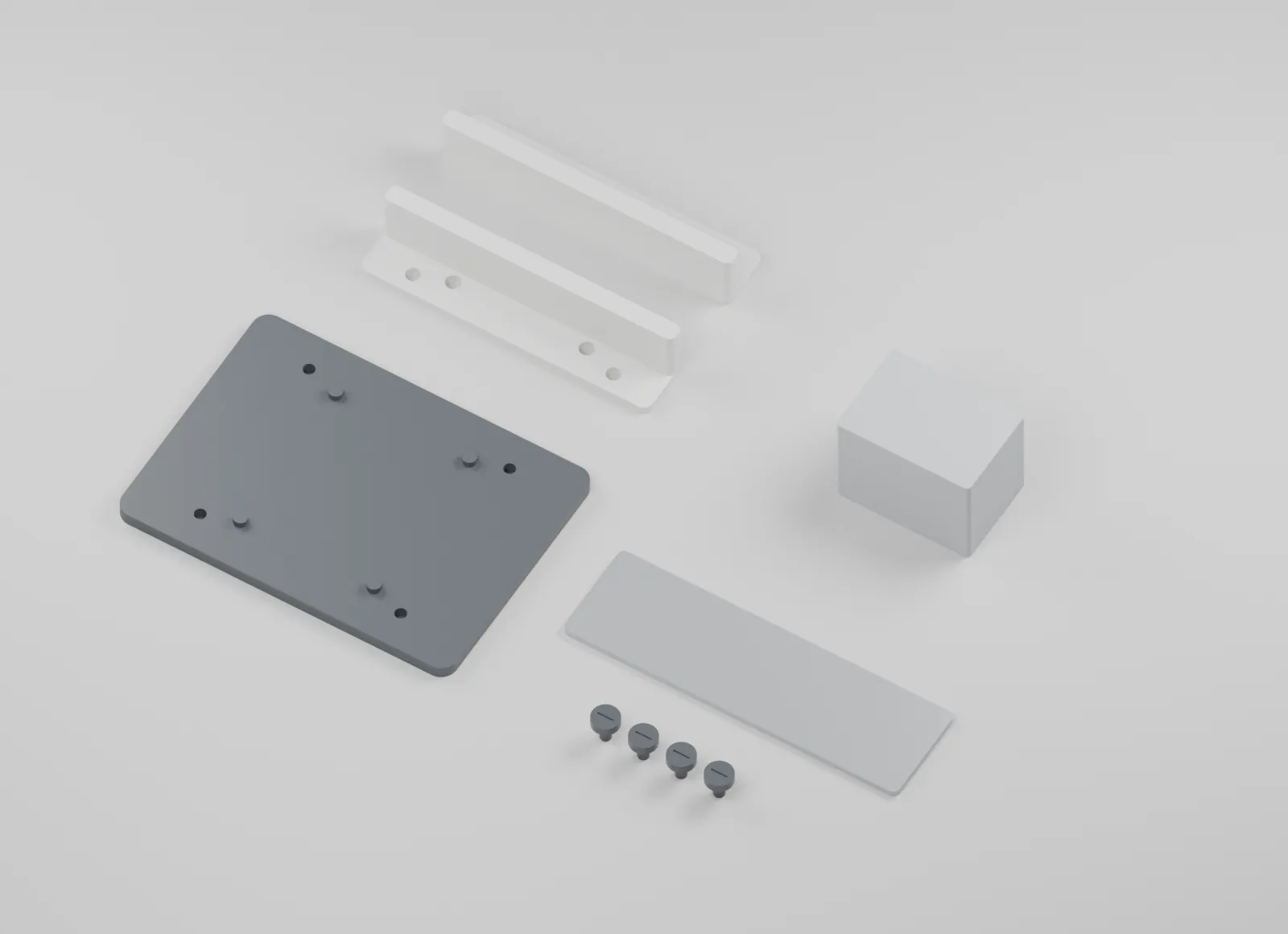

Guide cassettes and dummy package arranged separately
The guide components and reference package.

Connect location and movement

Pin-located guide positions define the open package path. Each fence can be removed separately.

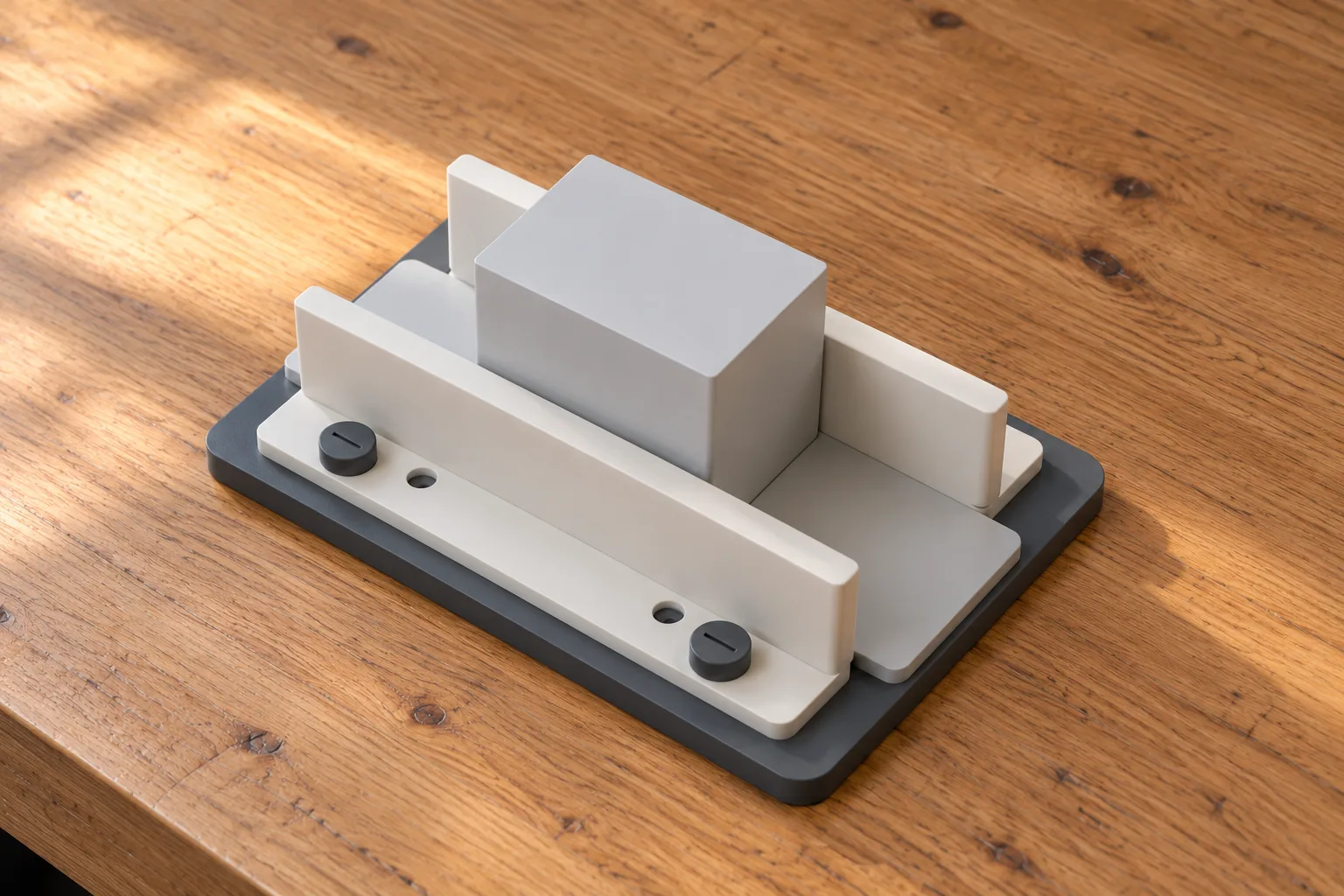

Rendered workshop scene of the original packaging guide
The assembled packaging-line guide.
