RV drawer guide with replaceable insert

Home / Design studies / RV drawer guide with replaceable insert

A guide body and replaceable wear insert define a path around an original drawer-rail interface.

An original Vekform CAD design study, shown through CAD views and a rendered workshop scene.

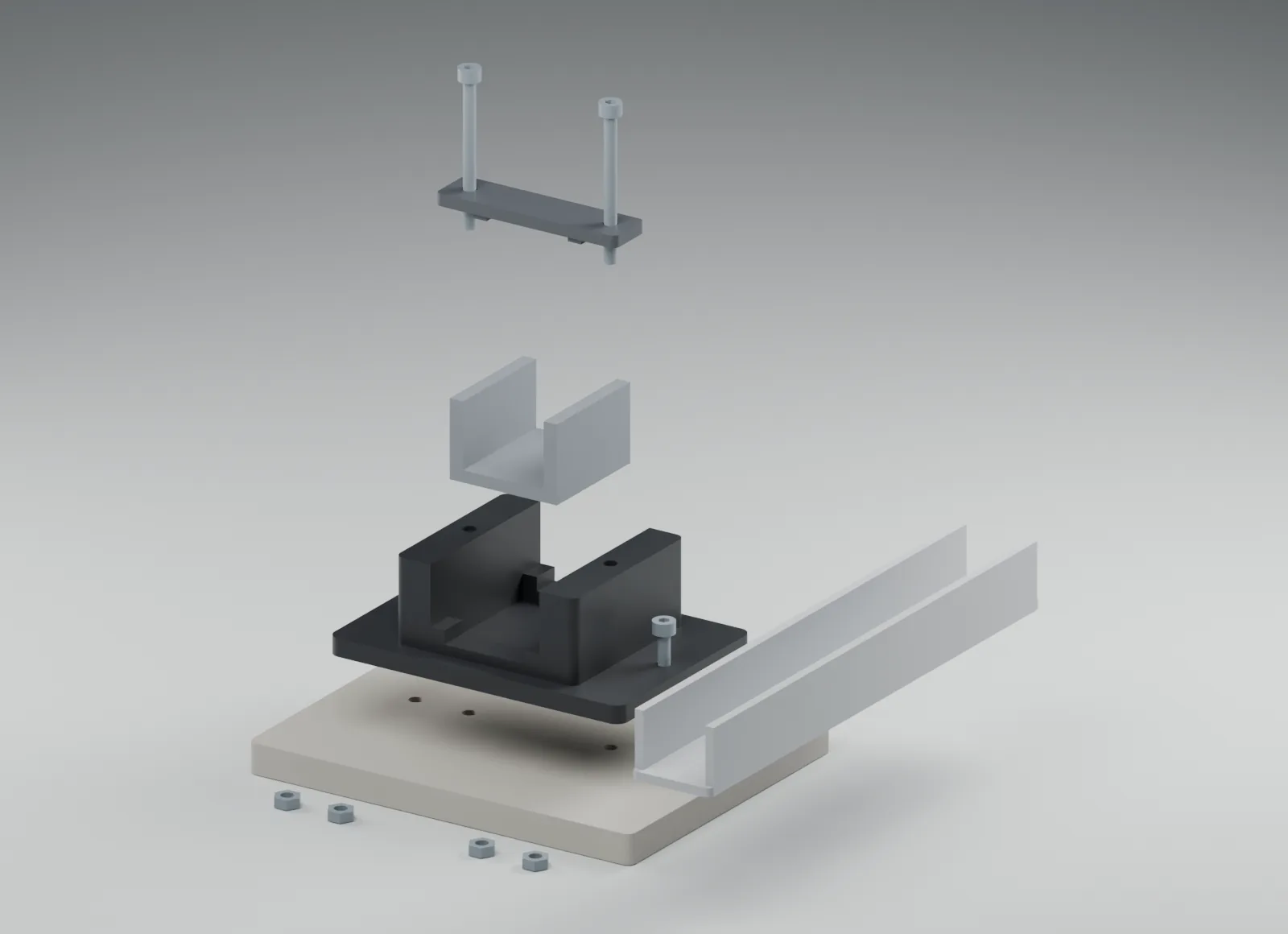

Exploded CAD view of an RV cabinet drawer guide body, replaceable wear insert and original rail interface — The guide body, wear insert and reference rail shown separately.

Defining the rail path

The guide sits at an original rail and cabinet interface. Its shaped opening defines the intended travel path, with a separate insert between the rail and the main guide body.

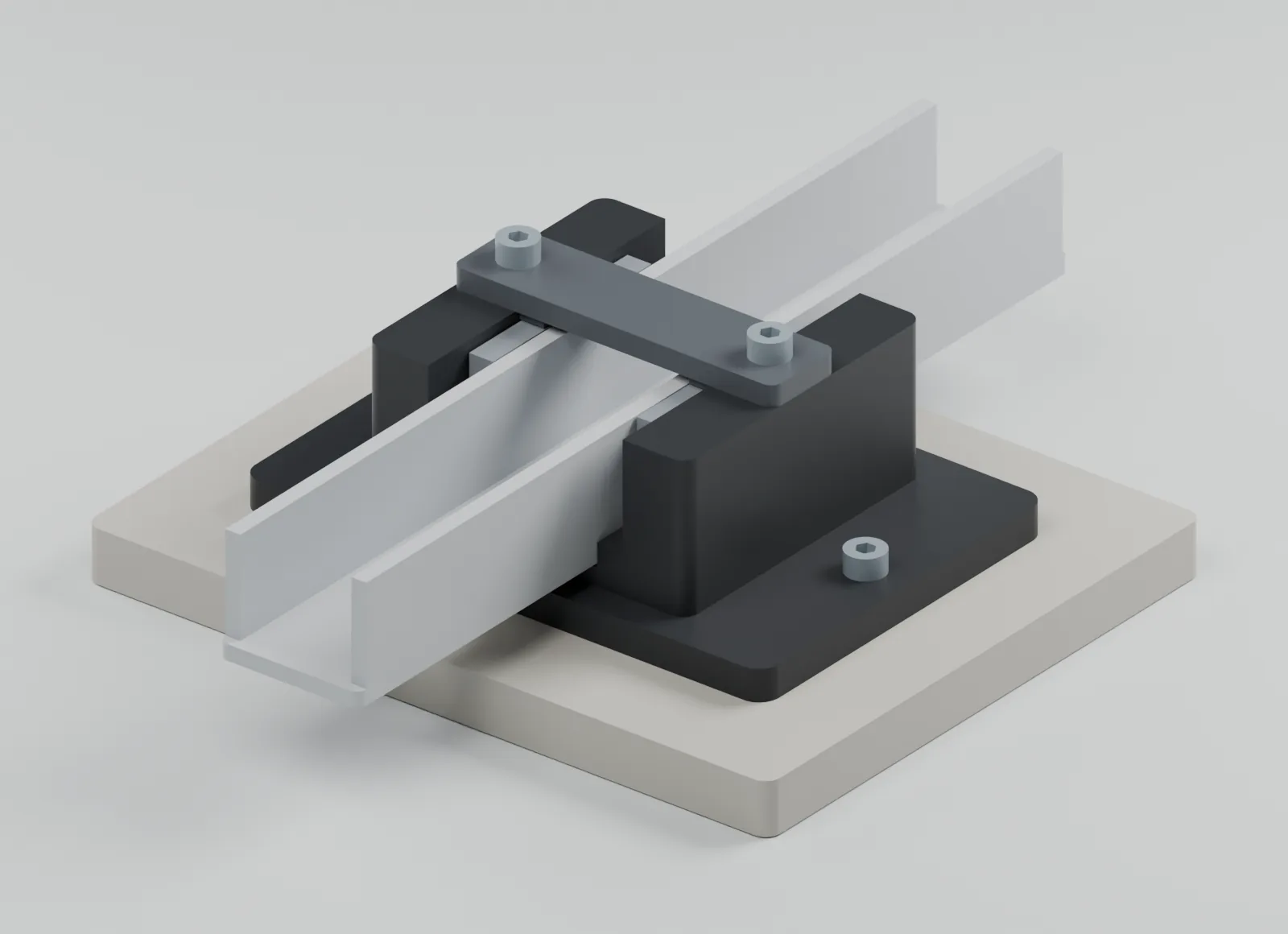

Assembled CAD view of the drawer guide at its original rail and cabinet interface — The guide around its reference rail.

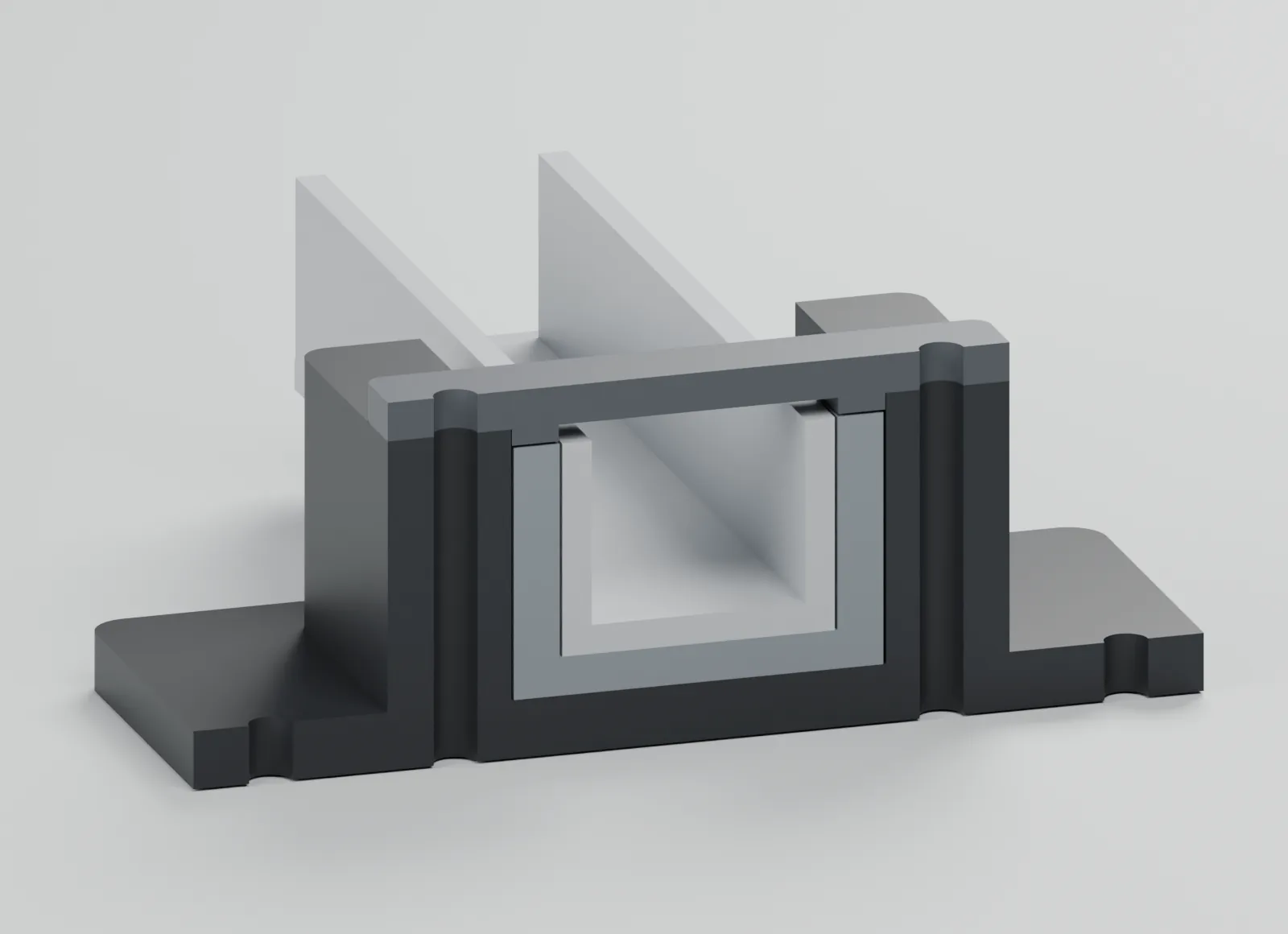

CAD half-section exposing the rail seat, replaceable insert and top keeper — A cutaway reveals the rail seat, insert and top keeper.

A replaceable contact piece

The rail runs through a separate U-shaped insert. Removing the top keeper and sliding the rail out opens a vertical path for replacing the insert.

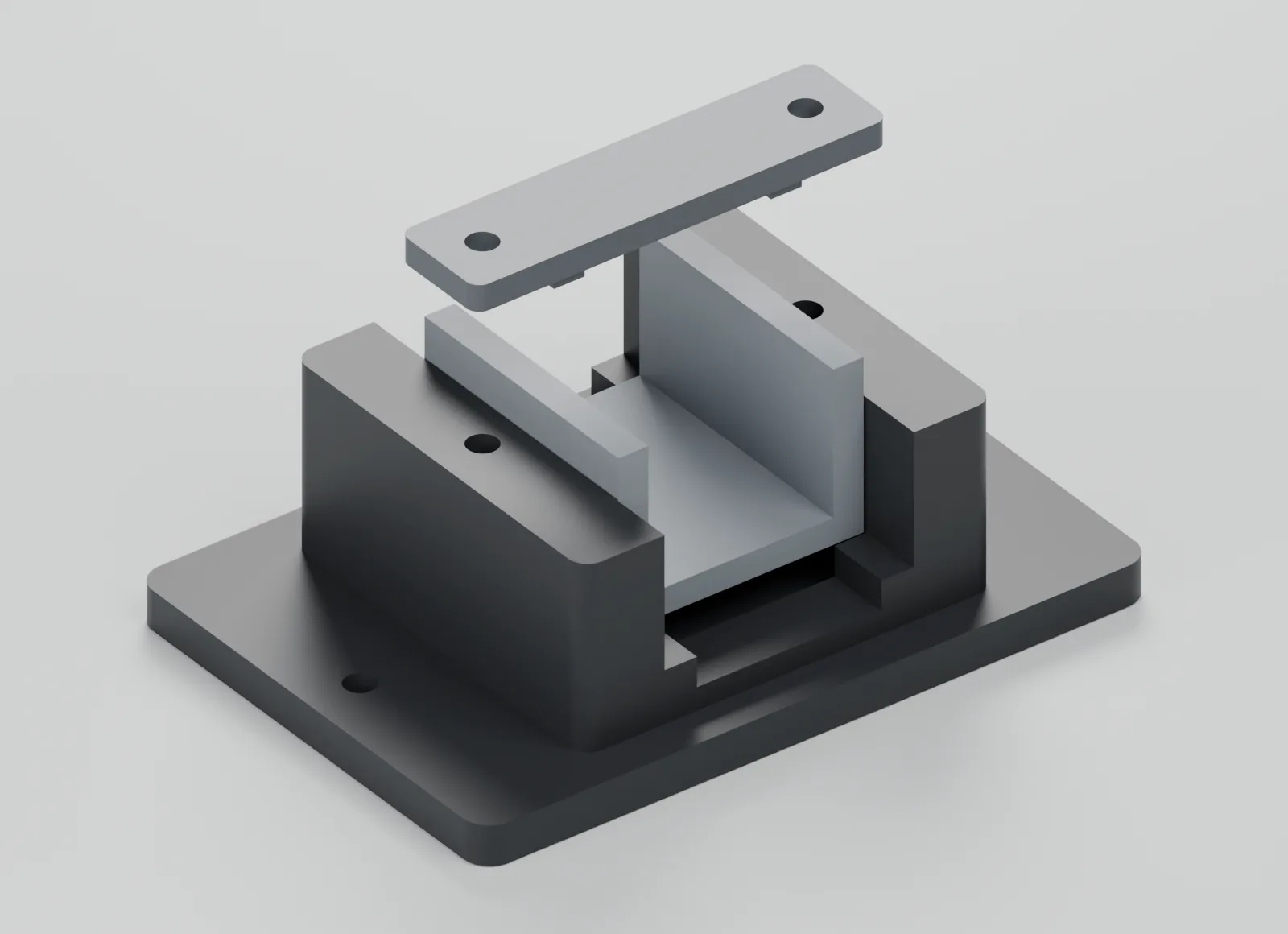

CAD view of the insert and top keeper lifted above their seats to reveal retention and access — The removable keeper and replaceable insert.

The guide and its reference parts

The component layout shows the body, insert and original reference interface separately. The arrangement makes the mounting and rail-contact features visible before assembly.

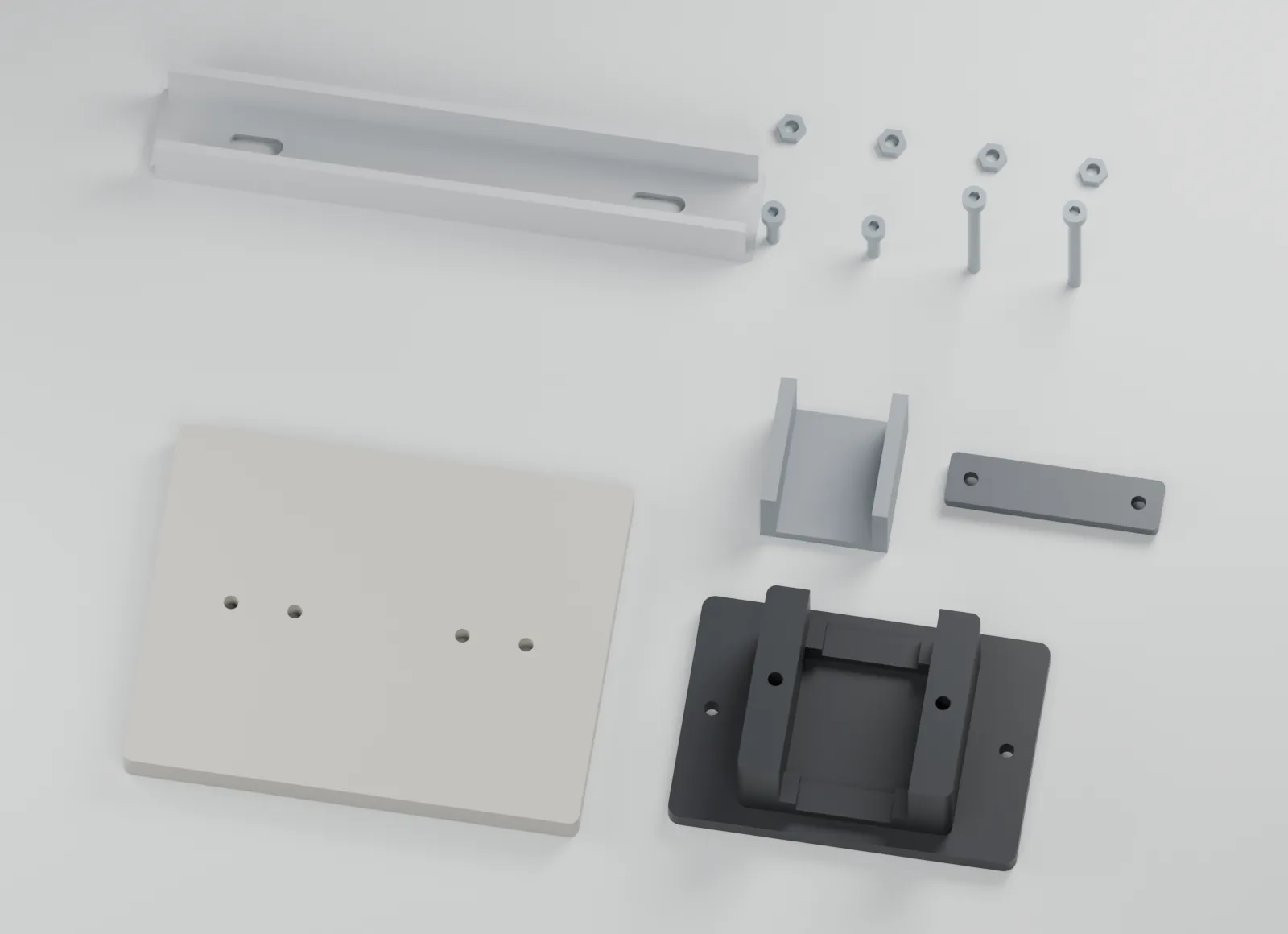

CAD layout of the drawer guide body, wear insert and original reference rail components — The individual guide and reference components.

The assembly in context

This view places the drawer-guide assembly on an illustrative workbench.

Rendered workshop scene showing the assembled drawer guide and reference rail — The assembled drawer guide.
